(35.359.AB[08]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX160D LC (35.359.AB[08]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

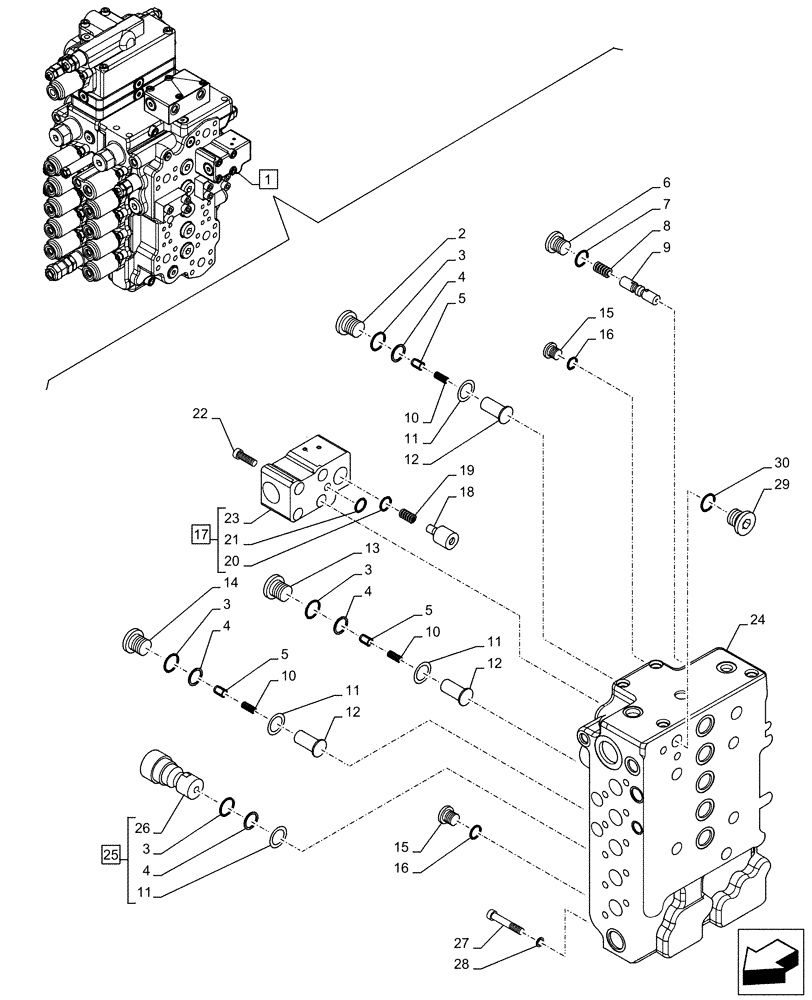

Схема запчастей Case CX160D LC - (35.359.AB[08]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
30
27
3
11
3
10
15
14
3
5
4
22
15
20
17
16
1
21
8
11
18
4
6
26
29
16
4
7
12
19
10
5
13
5
9
4
12
2
23
24
25
12
3
11
11
10
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14230

CONTROL VALVE

ASSY, Incl 2 - 30

1шт.

See also Figure 35.359.AB(07), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AY(04), 35.359.AY(05)

1шт.

2

LR01104

CAP

1шт.

3

LE026690

O-RING

4шт.

4

LE026600

RING

4шт.

5

155920A1

VALVE, CHECK

3шт.

6

LR015580

PLUG

1шт.

7

LE025950

O-RING

1шт.

8

LG006140

SPRING

1шт.

9

LJ014950

SPOOL

1шт.

10

156027A1

SPRING

3шт.

11

155295A1

BALL

4шт.

12

LJ014920

VALVE PRESSURE RELIE

3шт.

13

LR015550

PLUG

1шт.

14

160918A1

CAP

1шт.

15

160903A1

CAP

2шт.

16

LE026670

O-RING

3шт.

17

LJ022760

VALVE

ASSY, Incl 20, 21, 23

1шт.

18

160914A1

VALVE POPPET

1шт.

19

160948A1

SPRING

1шт.

20

LE026710

O-RING

1шт.

21

LE026630

O-RING

3шт.

22

LA017270

BOLT

4шт.

23

NSS

NOT SOLD SEPARAT

Valve, Incl in 17

1шт.

24

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

25

LJ022780

VALVE

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 11 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

Valve, Incl in 25

1шт.

27

LA017280

BOLT

4шт.

28

LA017290

WASHER

4шт.

29

156263A1

CAP

1шт.

30

LE025940

O-RING

1шт.
