(35.359.AB[09]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX160D LC (35.359.AB[09]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

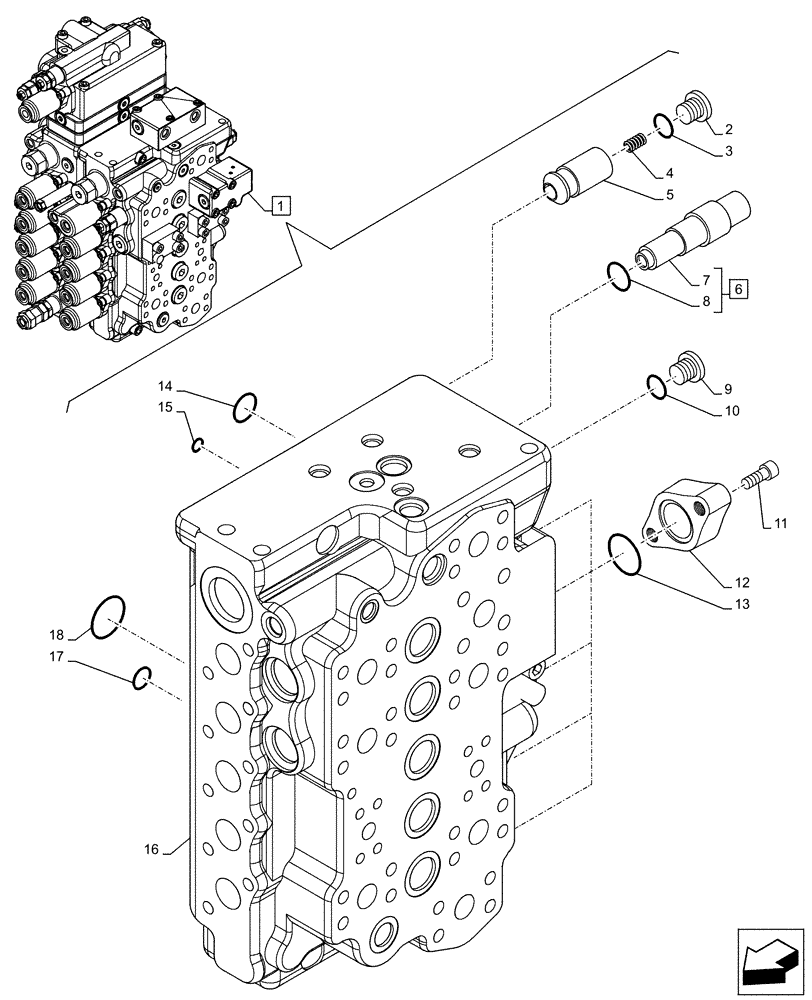

Схема запчастей Case CX160D LC - (35.359.AB[09]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
6
16
10
13
7
5
1
15
4
11
9
18
8
3
17
14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14230

CONTROL VALVE

ASSY, Incl 2 - 18

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB (13), 35.359.AY(04), 35.359.AY(05)

1шт.

2

156263A1

CAP

1шт.

3

LE026660

O-RING

1шт.

4

LG006730

SPRING

1шт.

5

LJ016750

KIT

1шт.

6

LJ023110

VALVE

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Regeneration Valve, Incl in 6

1шт.

8

LE026670

O-RING

1шт.

9

160902A1

CAP

1шт.

10

LE026620

O-RING

1шт.

11

LA017260

BOLT

40шт.

12

160850A1

RETAINER

10шт.

13

LE025880

O-RING

10шт.

14

LE025910

O-RING

1шт.

15

LE025900

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

17

LE025930

O-RING

11шт.

18

LE025920

O-RING

4шт.
