(35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX160D LC (35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

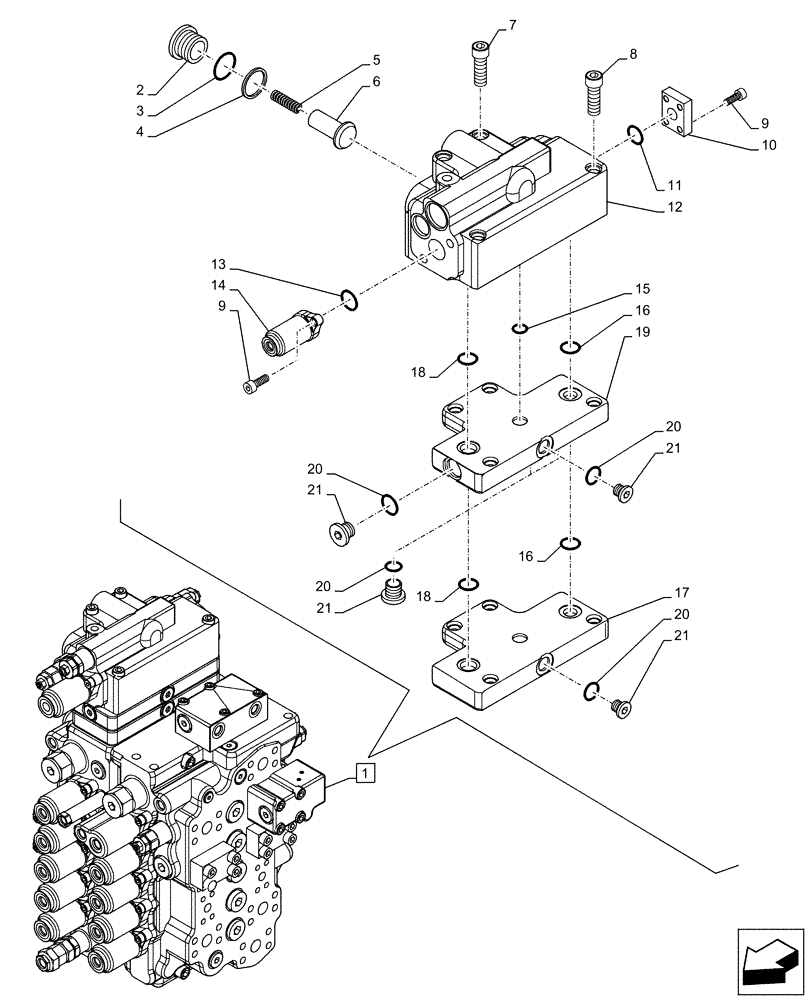

Схема запчастей Case CX160D LC - (35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
21
10
21
21
21
5
12
16
14
20
19
15
20
9
20
18
18
4
20
9
17
11
16
8
13
6
7
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14230

CONTROL VALVE

ASSY, Incl 2 - 21

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AY(04), 35.359.AY(05)

1шт.

2

LR015560

PLUG

1шт.

3

LE026690

O-RING

1шт.

4

LE026600

RING

1шт.

5

156027A1

SPRING

1шт.

6

LJ014920

VALVE PRESSURE RELIE

1шт.

7

LA011160

BOLT,Hex Skt Hd

2шт.

8

LA017560

BOLT

2шт.

9

LA017260

BOLT

6шт.

10

160850A1

RETAINER

1шт.

11

LE025880

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

13

LE025870

O-RING

1шт.

14

LW005150

CAP

1шт.

15

LE026670

O-RING

2шт.

16

LE026710

O-RING

2шт.

17

LR015610

PLATE

1шт.

18

LE026700

O-RING

2шт.

19

LR015600

PLATE

1шт.

20

LE026660

O-RING

5шт.

21

156263A1

CAP

5шт.
