(35.359.AE) - CONTROL VALVE LINE

Запчасти Case CX160D LC (35.359.AE) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

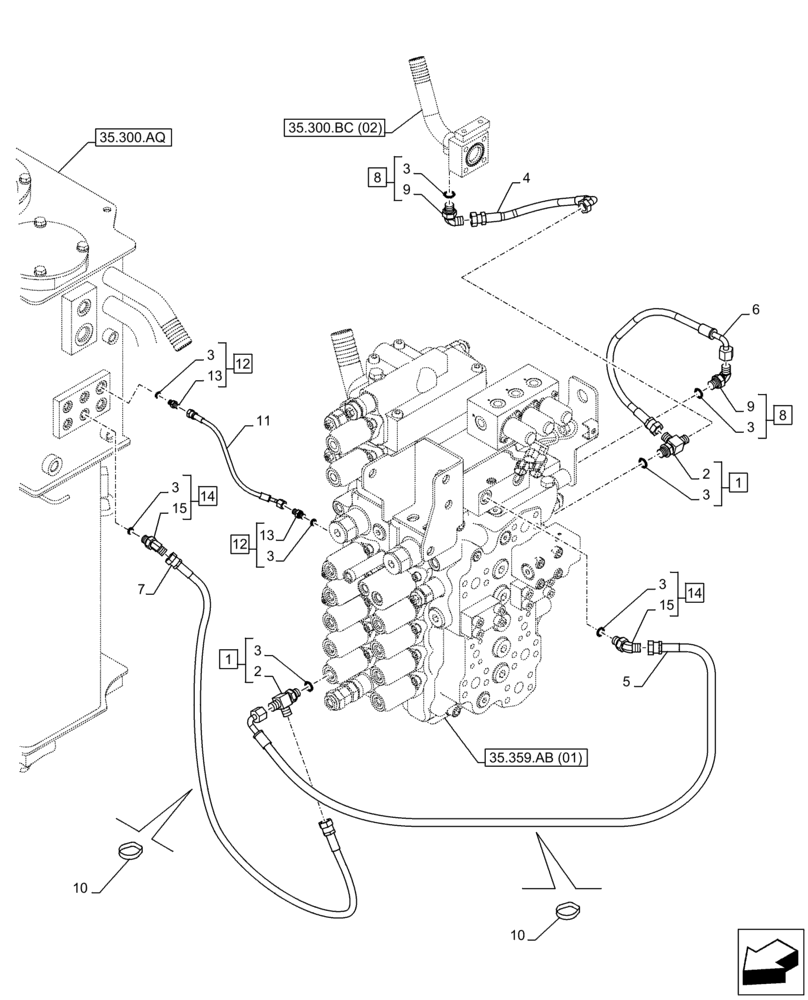

Схема запчастей Case CX160D LC - (35.359.AE) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.300.bc (02)
14
3
6
3
13
11
3
8
12
35.359.ab (01)
35.300.aq
3
3
15
15
12
9
3
4
9
1
1
5
10
14
7
3
10
2
13
3
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159497A1

TEE

ASSY, Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 1

2шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

4

168807A1

HOSE ASSY.

6mm ID x 260mm

1шт.

5

KHJ2091

HOSE

6mm ID x 1050mm

1шт.

6

KHJ2179

HOSE

6mm ID x 450mm

1шт.

7

KHJ2311

HOSE

6mm ID x 1500mm

1шт.

8

KHJ28580

ELBOW

ASSY, Incl 9, 3 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

150071A1

MOUNTING CLIP

380mm

1шт.

11

KHJ12090

HOSE

6mm ID x 450mm

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 13, 3 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

2шт.

14

KHJ28630

ELBOW

ASSY, Incl 15, 3 (Qty 1)

2шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

2шт.
