(35.359.AY[03]) - RELIEF VALVE, COMPONENTS

Запчасти Case CX160D LC (35.359.AY[03]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

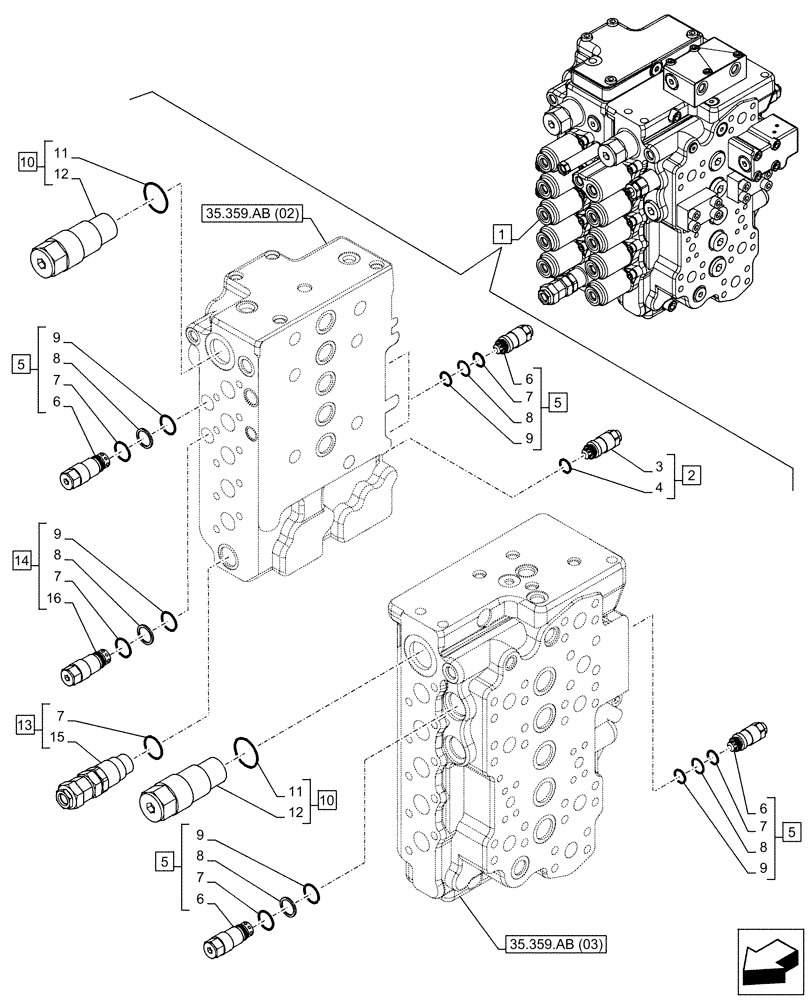

Схема запчастей Case CX160D LC - (35.359.AY[03]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (03)
1
12
10
14
6
10
12
8
5
6
7
8
4
7
8
6
7
9
9
2
5
8
3
9
5
15
9
7
11
11
7
6
5
13
9
8
16
7
35.359.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14220

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04), 35.359.AB(05), 35.359.AB(06)

1шт.

2

LJ022770

VALVE

ASSY, Incl 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

LE025890

O-RING

1шт.

5

LJ016730

VALVE PRESSURE RELIE

ASSY, Incl 6, 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

5шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

5шт.

7

LE026690

O-RING

6шт.

8

LE026610

RING

5шт.

9

LE026720

O-RING

5шт.

10

LJ022980

VALVE

ASSY, Incl 11, 12

2шт.

11

LE026710

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.

13

LJ00800

VALVE, PRESSURE RELI

ASSY, Incl 7 (Qty 1), 15

1шт.

14

LJ016740

VALVE PRESSURE RELIE

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 16

1шт.

15

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Incl in 14

1шт.
