(35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX160D LC (35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

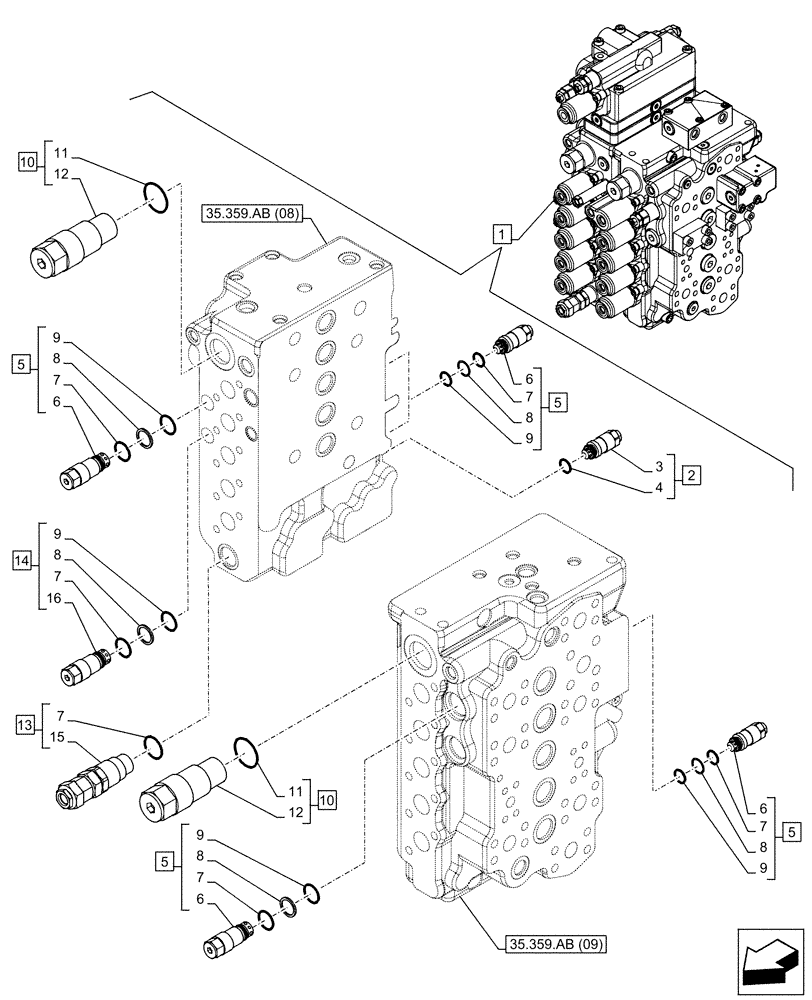

Схема запчастей Case CX160D LC - (35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (09)
5
6
10
7
8
12
5
1
9
7
7
8
6
8
6
12
7
4
9
16
13
3
2
8
8
10
9
15
9
6
11
5
14
7
5
11
7
9
35.359.ab (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14230

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AY(05)

1шт.

2

LJ022770

VALVE

ASSY, Incl 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

LE025890

O-RING

1шт.

5

LJ016730

VALVE PRESSURE RELIE

ASSY, Incl 6, 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

5шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

5шт.

7

LE026690

O-RING

6шт.

8

LE026610

RING

5шт.

9

LE026720

O-RING

5шт.

10

LJ022980

VALVE

ASSY, Incl 11 - 12

2шт.

11

LE026710

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.

13

LJ00800

VALVE, PRESSURE RELI

ASSY, Incl 7 (Qty 1), 15

1шт.

14

LJ016740

VALVE PRESSURE RELIE

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 16

1шт.

15

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Incl in 14

1шт.
