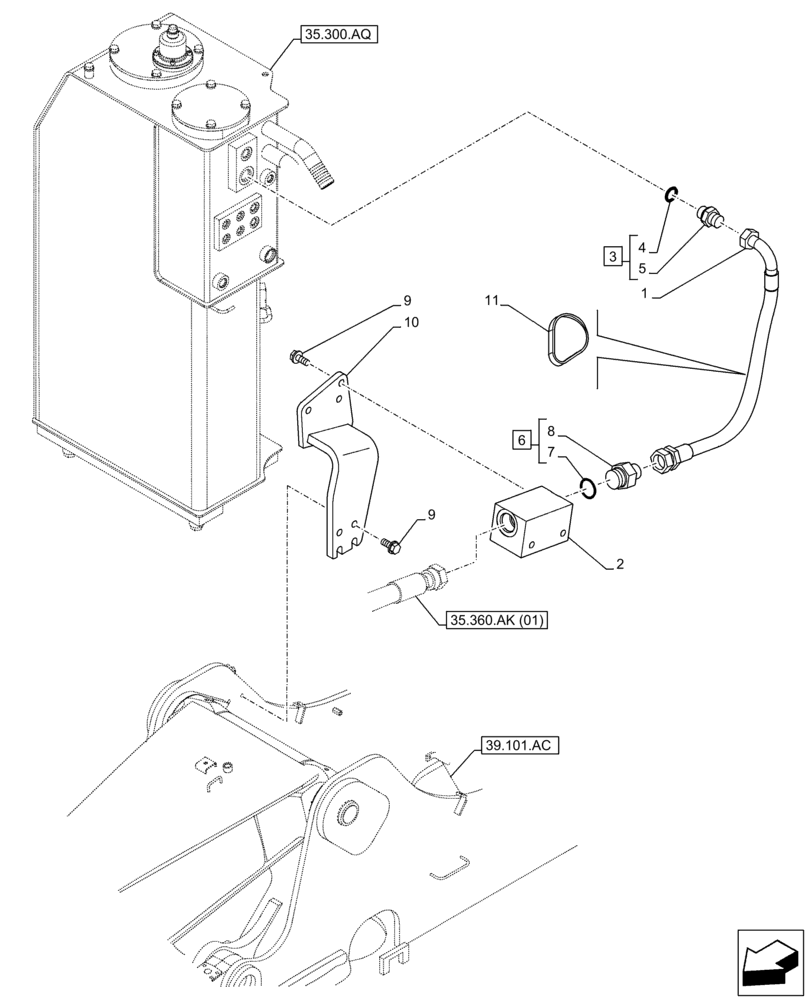

Запчасти Case CX160D LC (35.360.AB[01]) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KLJ14020

HYDRAULIC HOSE

19mm ID x 790mm

1шт.

2

KRJ12170

MANIFOLD VALVE

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 4, 5

1шт.

4

150542A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 7, 8

1шт.

7

152211A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

166352A1

BOLT

M12 x 30mm

6шт.

10

KRJ16050

SUPPORT

1шт.

11

150496A1

MOUNTING CLIP

1шт.
