(35.360.AB[02]) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AB[02]) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

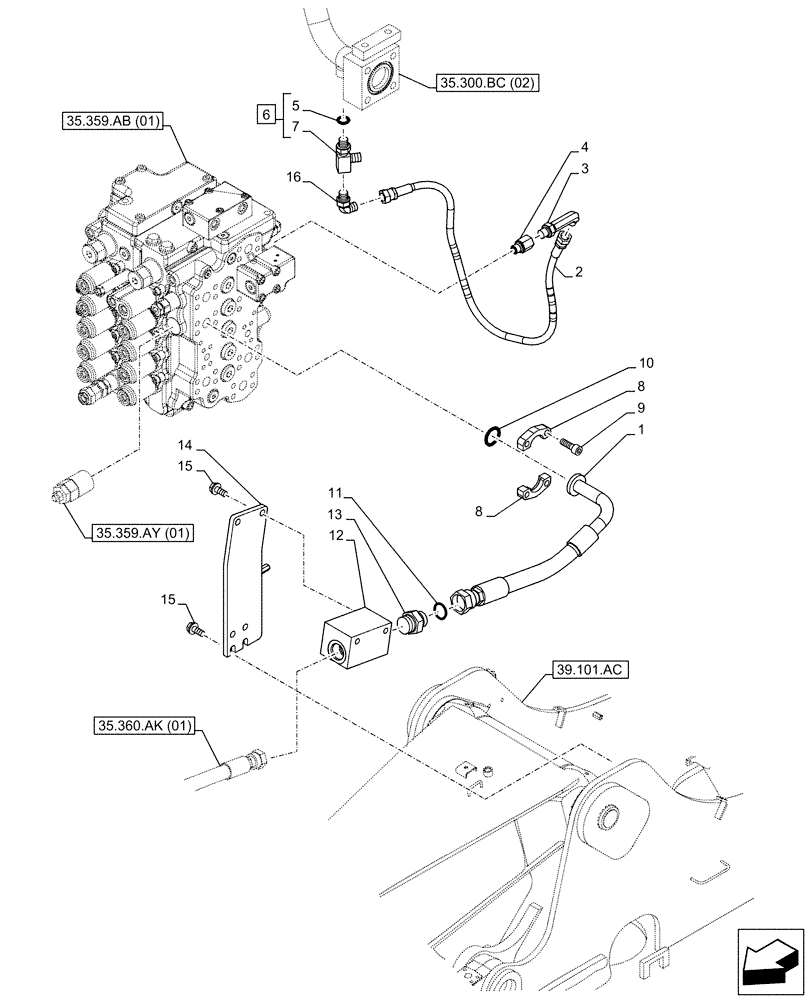

Схема запчастей Case CX160D LC - (35.360.AB[02]) - VAR - 461865 - HAMMER CIRCUIT, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
13
7
12
15
10
11
35.359.ay (01)
6
1
2
8
35.300.bc (02)
39.101.ac
8
35.359.ab (01)
3
14
16
4
9
15
5
35.360.ak (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14860

HYDRAULIC HOSE

19mm ID x 650mm

1шт.

2

KHJ2033

HOSE

6mm ID x 850mm

1шт.

3

KHJ28810

ELBOW

G1/4" x G1/4"

1шт.

4

KHJ13640

STUD

G1/4"

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KHJ2773

TEE

ASSY, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

153458A1

FLANGE

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

161097A1

O-RING

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

12

KRJ12170

MANIFOLD VALVE

1шт.

13

KHJ1941

FITTING

1шт.

14

KRJ11470

SUPPORT

1шт.

15

166352A1

BOLT

M12 x 30mm

2шт.

16

KHJ28580

ELBOW

1шт.
