(35.360.AB[05]) - VAR - 461868, 461869 - DIRECTIONAL CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AB[05]) - VAR - 461868, 461869 - DIRECTIONAL CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

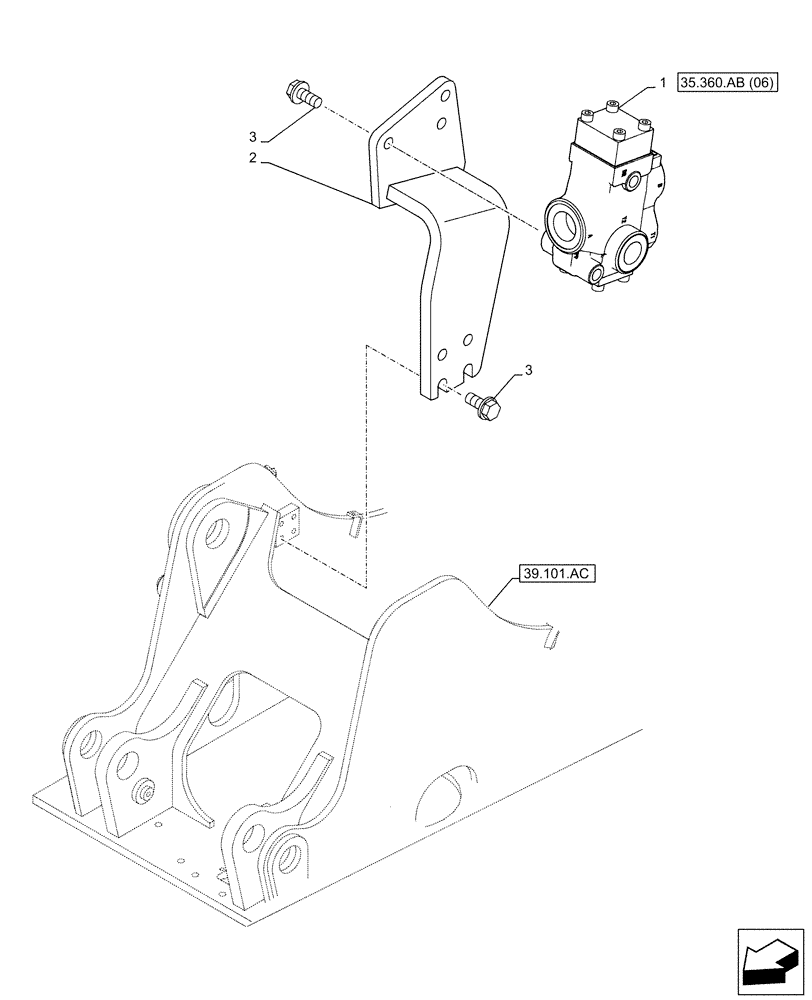

Схема запчастей Case CX160D LC - (35.360.AB[05]) - VAR - 461868, 461869 - DIRECTIONAL CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
3
3
2
35.360.ab (06)
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10420

VALVE SECTION

ASSY

1шт.

2

KRJ16050

SUPPORT

2шт.

3

166352A1

BOLT

M12 x 30mm

6шт.
