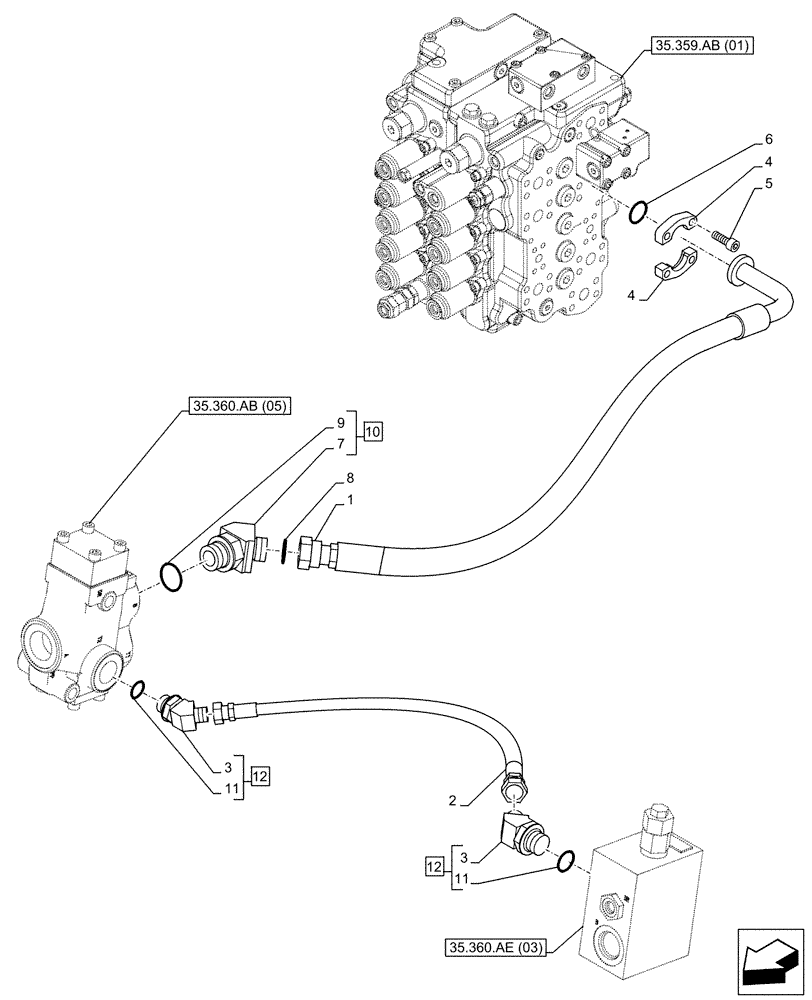

Запчасти Case CX160D LC (35.360.AB[10]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KLJ14870

HYDRAULIC HOSE

19mm ID x 1150mm

1шт.

2

KAJ2882

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

3

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 12

2шт.

4

153458A1

FLANGE

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

6

161097A1

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 10

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

9

KHJ16290

ELBOW

ASSY, Incl 7, 9

1шт.

10

152211A1

O-RING

1шт.

11

150542A1

O-RING

2шт.

12

KHJ2243

ELBOW

ASSY, G3/4" x G1/2", Incl 3, 11

2шт.
