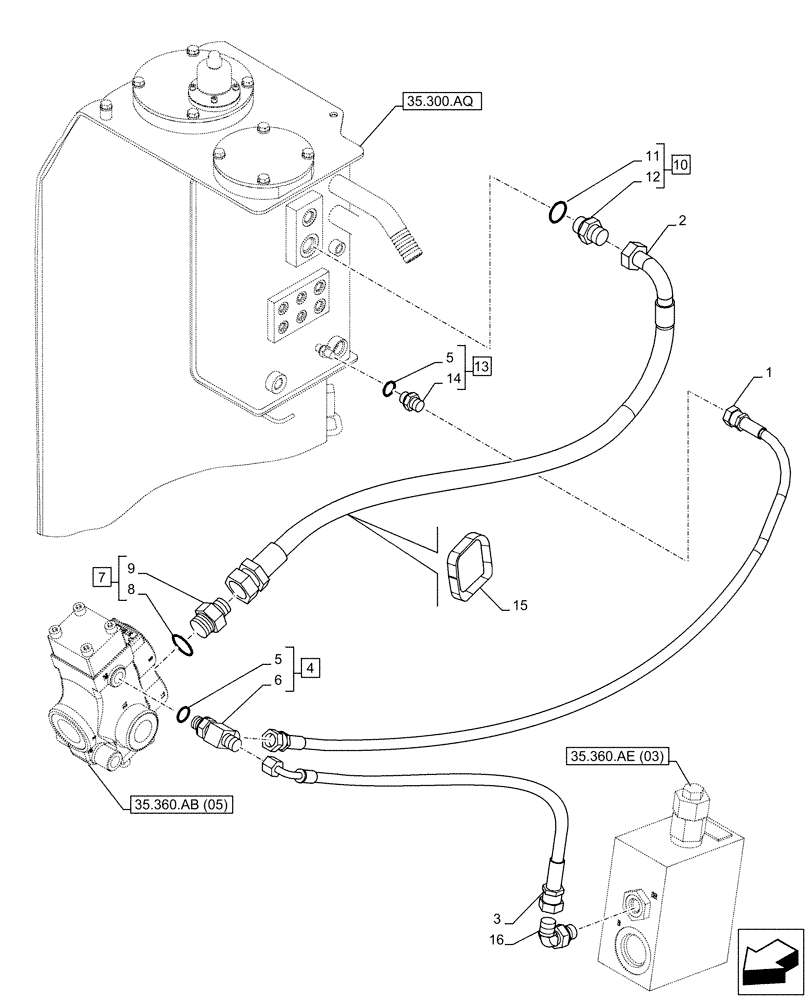

Запчасти Case CX160D LC (35.360.AB[11]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2245

HOSE

6mm ID x 850mm

1шт.

2

KLJ14020

HYDRAULIC HOSE

19mm ID x 790mm

1шт.

3

KHJ16880

HOSE

6mm ID x 1100mm

1шт.

4

159497A1

TEE

ASSY, G1/4" x G1/4" G1/4", Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

7

169040A1

ADAPTER

ASSY, G1" X G3/4", Incl 8, 9

1шт.

8

152211A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 11, 12

1шт.

11

150542A1

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 113

1шт.

15

150496A1

MOUNTING CLIP

250mm

1шт.

16

KHJ28580

ELBOW

1шт.
