(35.360.AB[13]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AB[13]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

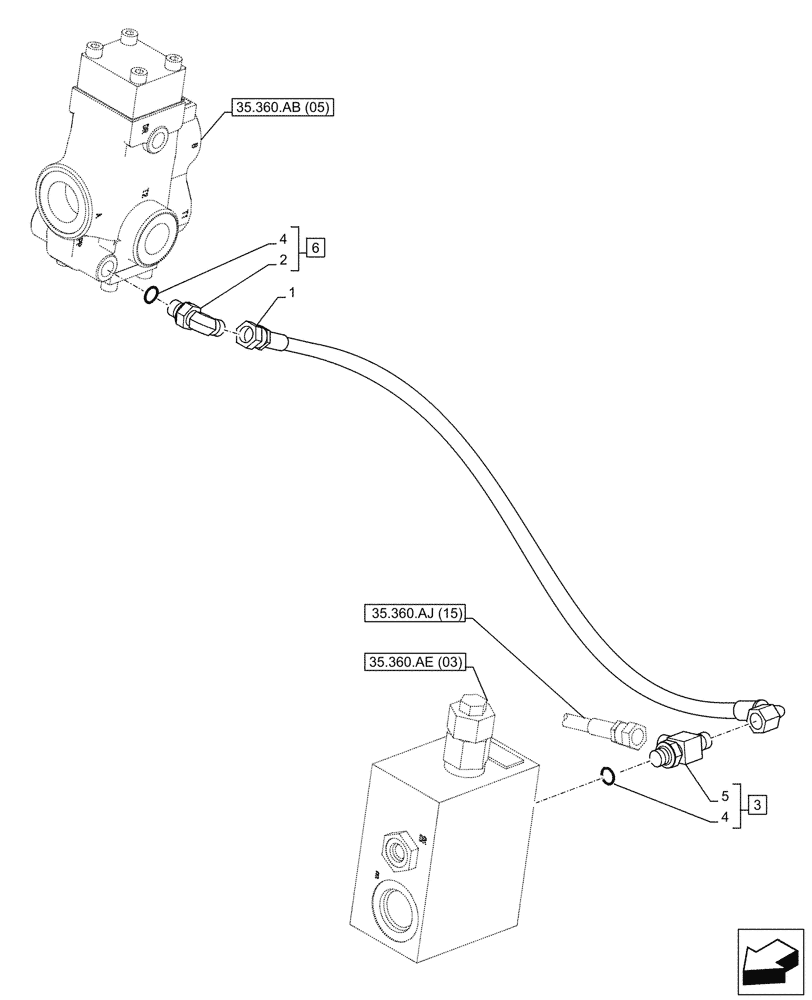

Схема запчастей Case CX160D LC - (35.360.AB[13]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.aj (15)
2
1
4
6
5
3
4
35.360.ae (03)
35.360.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ16860

HOSE

6mm ID X 950mm

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

3

159497A1

TEE

ASSY, Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

6

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 2 - 4 (Qty 1)

1шт.
