(35.360.AE[03]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AE[03]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

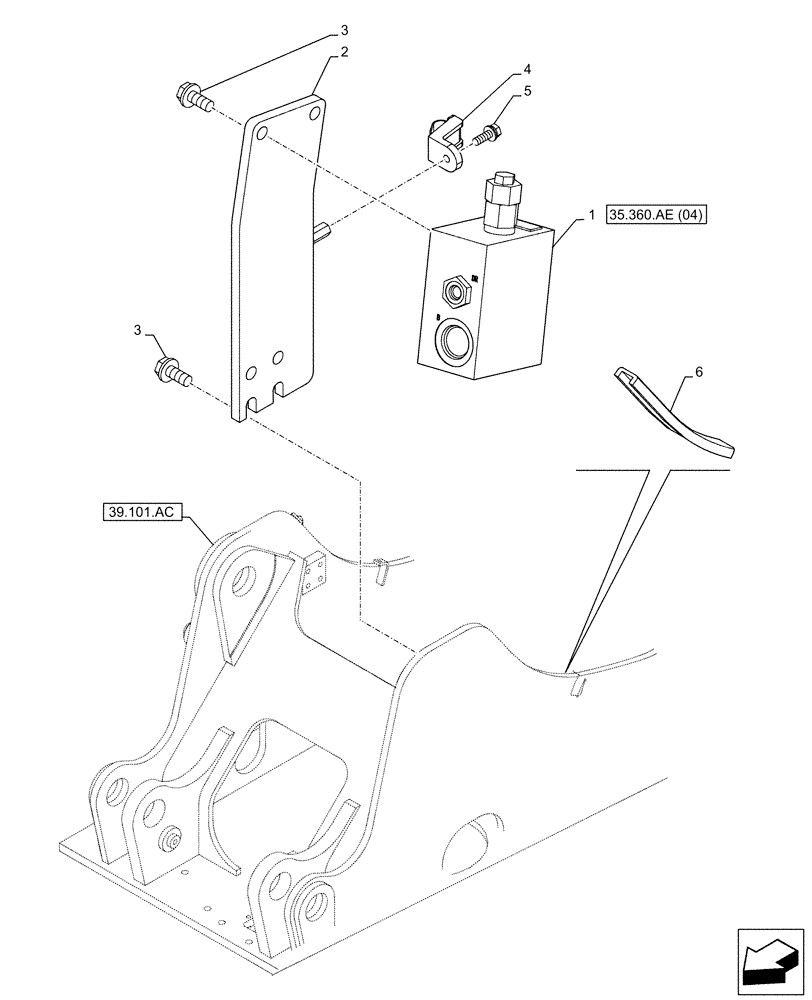

Схема запчастей Case CX160D LC - (35.360.AE[03]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
6
39.101.ac
35.360.ae (04)
5
4
3
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10410

VALVE SECTION

ASSY

1шт.

2

KRJ11470

SUPPORT

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHR2584

CLAMP

M8

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

162190A1

GROMMET

300mm

1шт.
