(35.360.AI[01]) - VAR - 461865, 461871, 461868, 461869 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AI[01]) - VAR - 461865, 461871, 461868, 461869 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

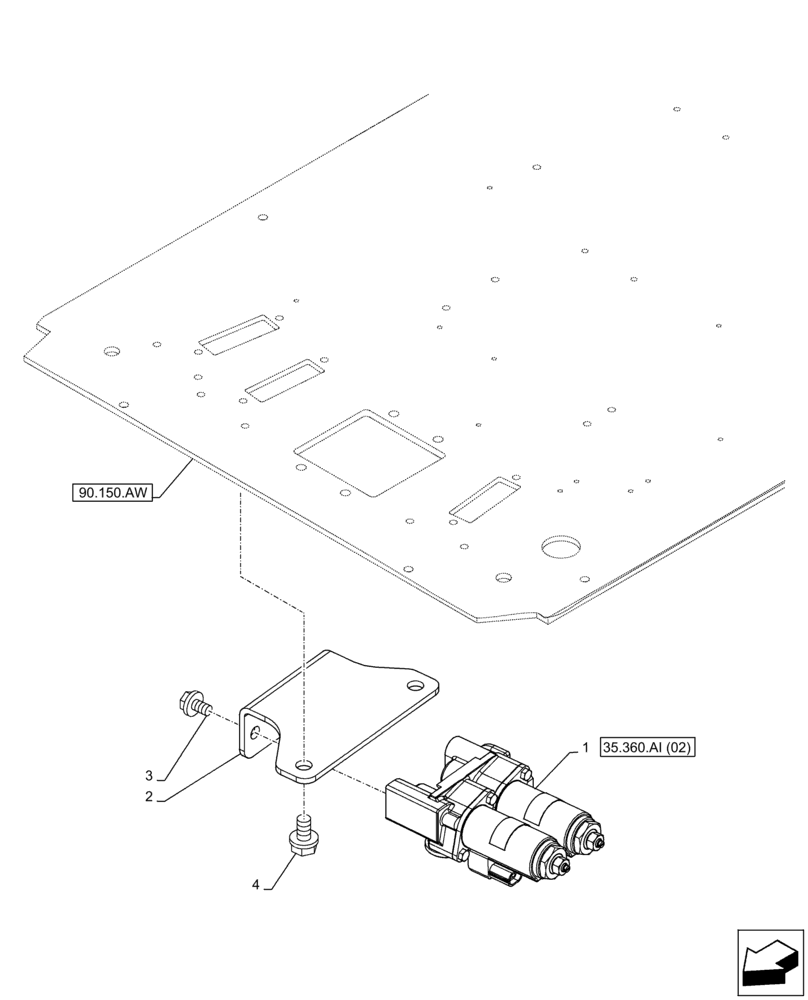

Схема запчастей Case CX160D LC - (35.360.AI[01]) - VAR - 461865, 461871, 461868, 461869 - SOLENOID VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
90.150.aw
4
1
35.360.ai (02)
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY

1шт.

2

KHJ28770

BRACKET

1шт.

3

166345A1

BOLT

M8 x 16mm

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.
