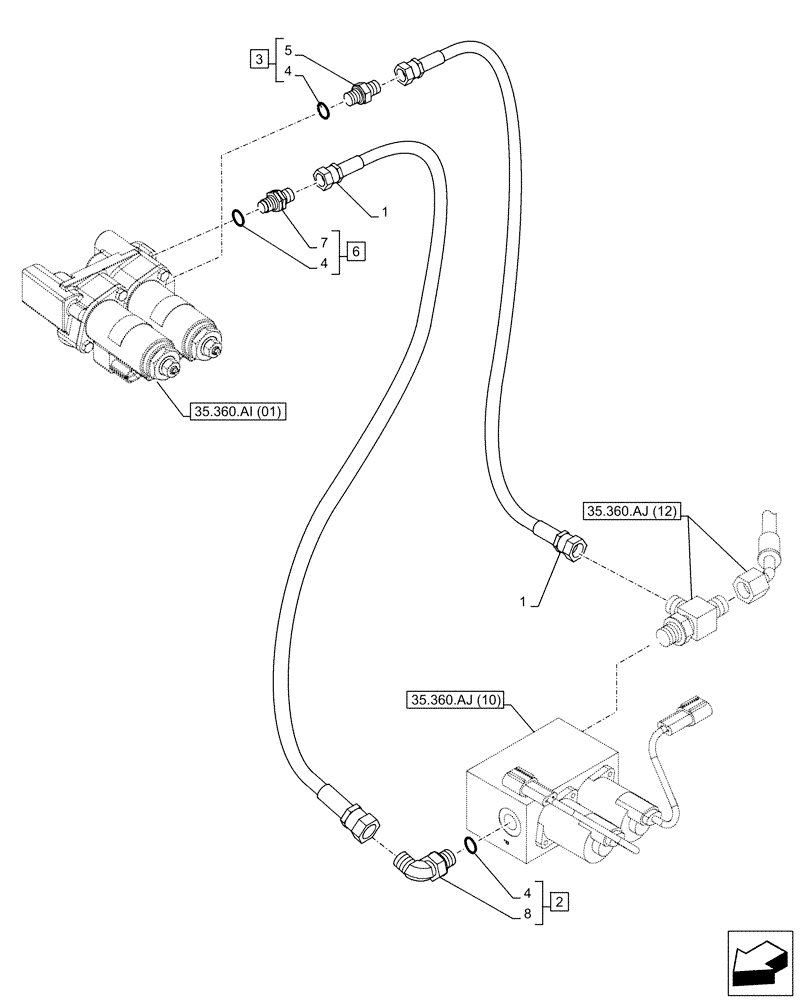

Запчасти Case CX160D LC (35.360.AJ[13]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2246

HOSE

6mm ID x 600mm

2шт.

2

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 8

1шт.

3

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 2

1шт.
