(35.360.AK[05]) - VAR - 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AK[05]) - VAR - 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

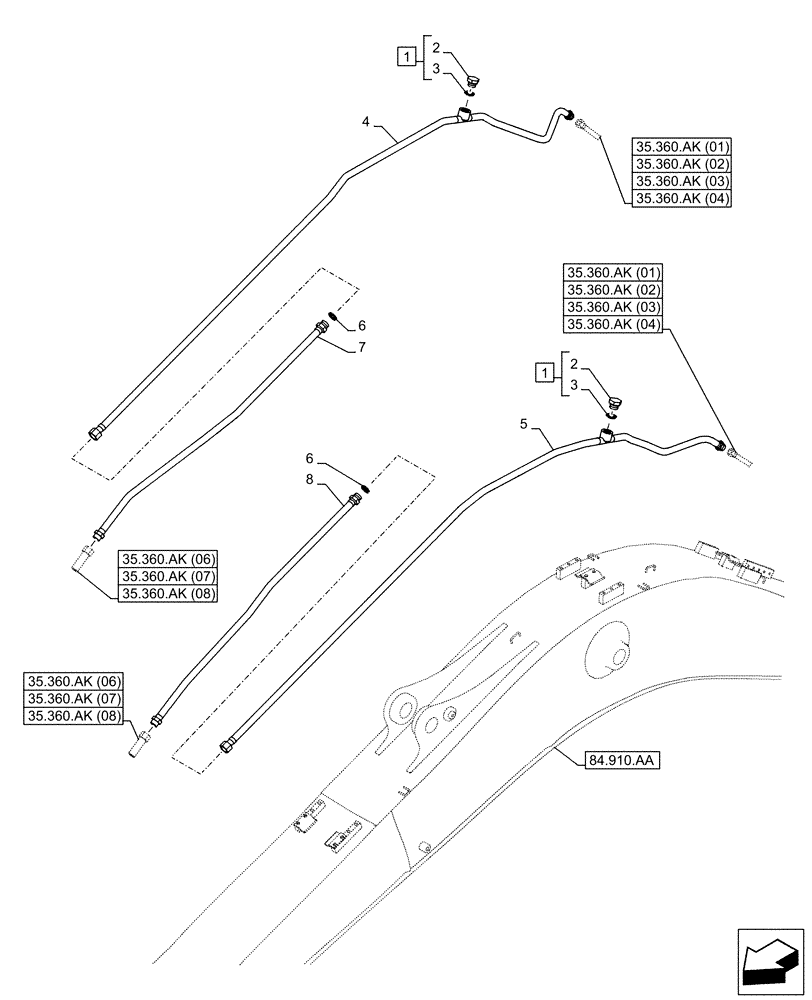

Схема запчастей Case CX160D LC - (35.360.AK[05]) - VAR - 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ak (01)
35.360.ak (04)
5
35.360.ak (07)
2
1
6
6
35.360.ak (08)
35.360.ak (01)
35.360.ak (06)
8
84.910.aa
2
35.360.ak (07)
35.360.ak (04)
7
3
35.360.ak (06)
1
35.360.ak (08)
3
35.360.ak (02)
35.360.ak (02)
35.360.ak (03)
35.360.ak (03)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY G3/4", Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

3

150542A1

O-RING

2шт.

4

KLV13710

HYD TUBE,Dia 27.2

1шт.

5

KLV13700

HYD TUBE,Dia 27.2

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

7

KLV12390

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

8

KLV12380

HYD TUBE,20.8 mm ID x 27.2 mm OD Adaptor

1шт.
