(35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

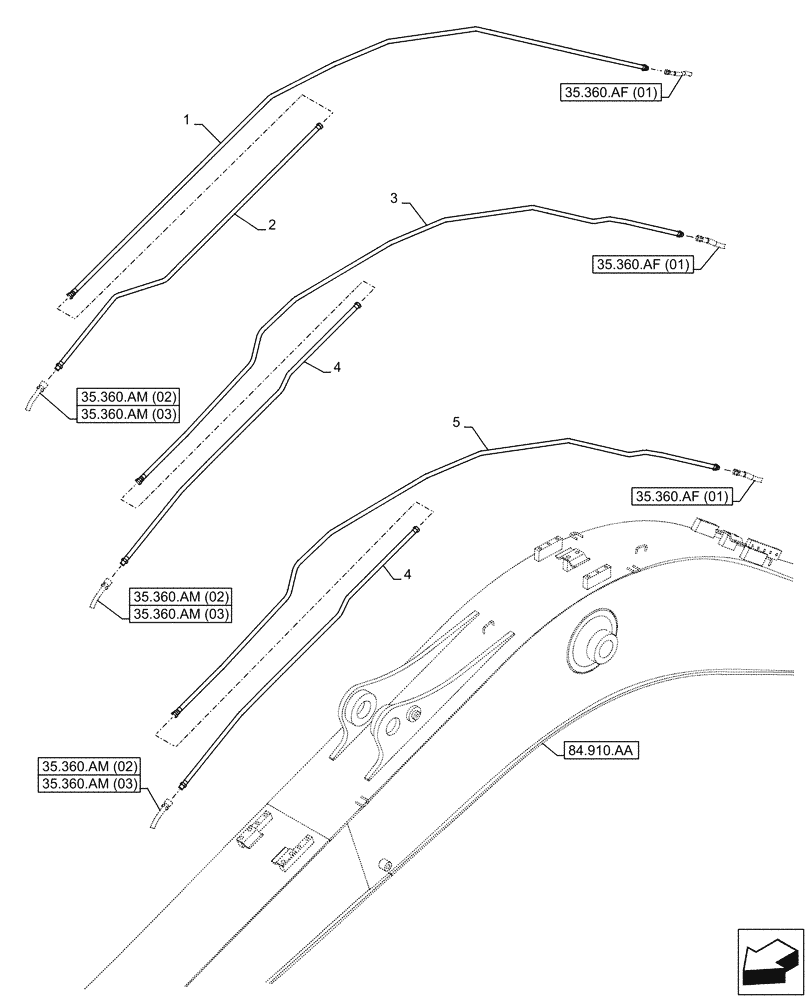

Схема запчастей Case CX160D LC - (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.am (03)
84.910.aa
35.360.af (01)
35.360.am (02)
4
35.360.am (02)
2
35.360.am (02)
35.360.am (03)
3
1
35.360.af (01)
35.360.am (03)
35.360.af (01)
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV12430

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

2

KLV12460

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

3

KLV14180

HYD TUBE,Dia 21.7

1шт.

4

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

2шт.

5

KLV14190

HYD TUBE,Dia 21.7

1шт.
