(35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.6M)

Запчасти Case CX160D LC (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.6M) (35) - HYDRAULIC SYSTEMS

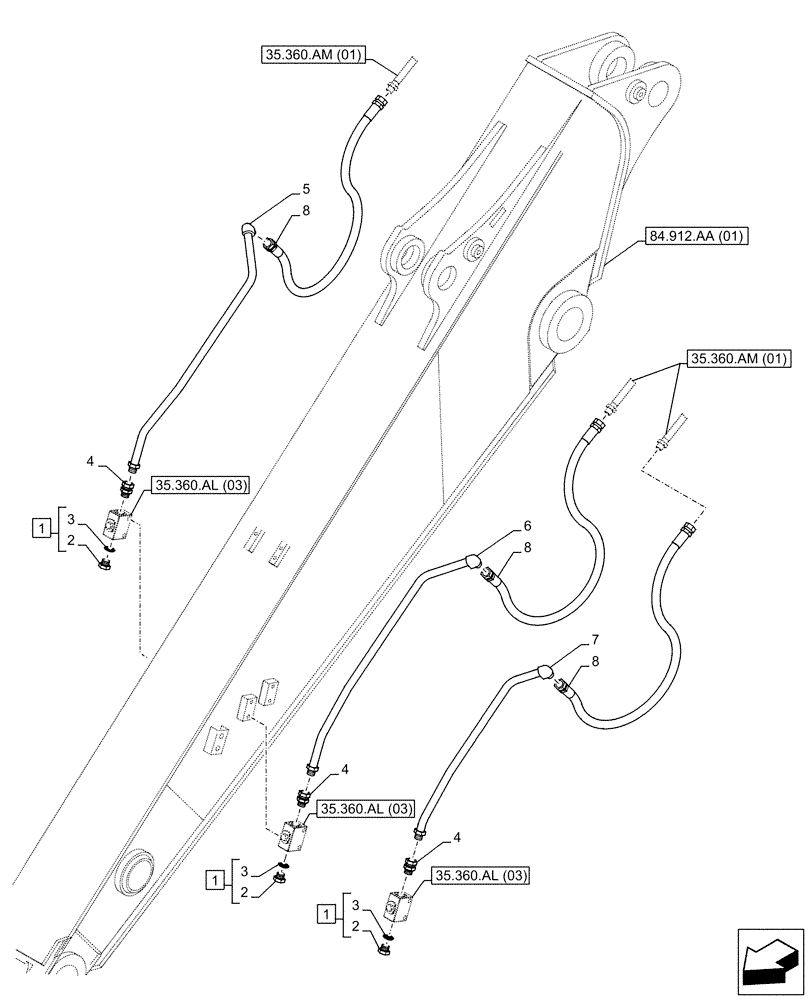

Схема запчастей Case CX160D LC - (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.6M) (35) - HYDRAULIC SYSTEMS
4
6
4
84.912.aa (01)
8
1
3
35.360.am (01)
3
35.360.al (03)
1
2
2
35.360.al (03)
35.360.am (01)
4
8
7
8
3
1
35.360.al (03)
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2 - 3

3шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

3

150539A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KLV12480

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

6

KLV12470

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

7

KLV12490

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

8

168535A1

HYDRAULIC HOSE

1250mm

3шт.
