(35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX160D LC (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

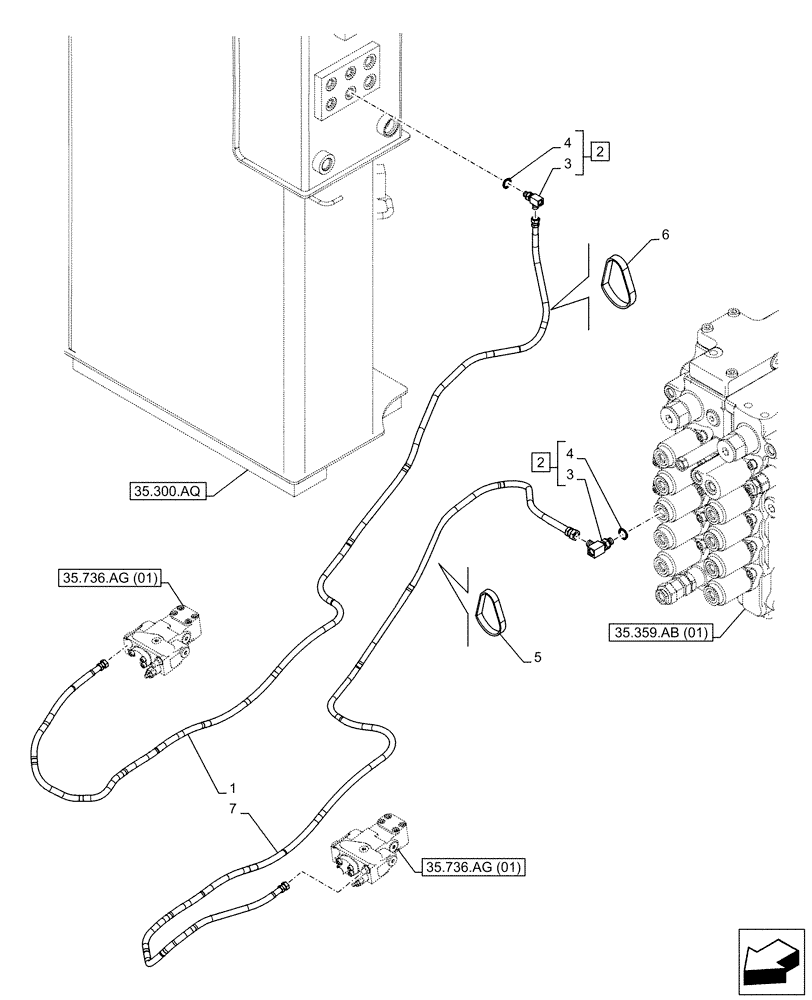

Схема запчастей Case CX160D LC - (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
4
5
35.300.aq
35.736.ag (01)
3
7
35.359.ab (01)
1
3
35.736.ag (01)
4
2
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ27940

HYDRAULIC HOSE

3450mm

2шт.

2

KHJ2773

TEE

ASSY G1/4", Incl 3 - 4

2шт.

3

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 2

2шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.

6

150071A1

MOUNTING CLIP

380mm

1шт.

7

KHJ20970

HYDRAULIC HOSE

3500mm

1шт.
