(35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX160D LC (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

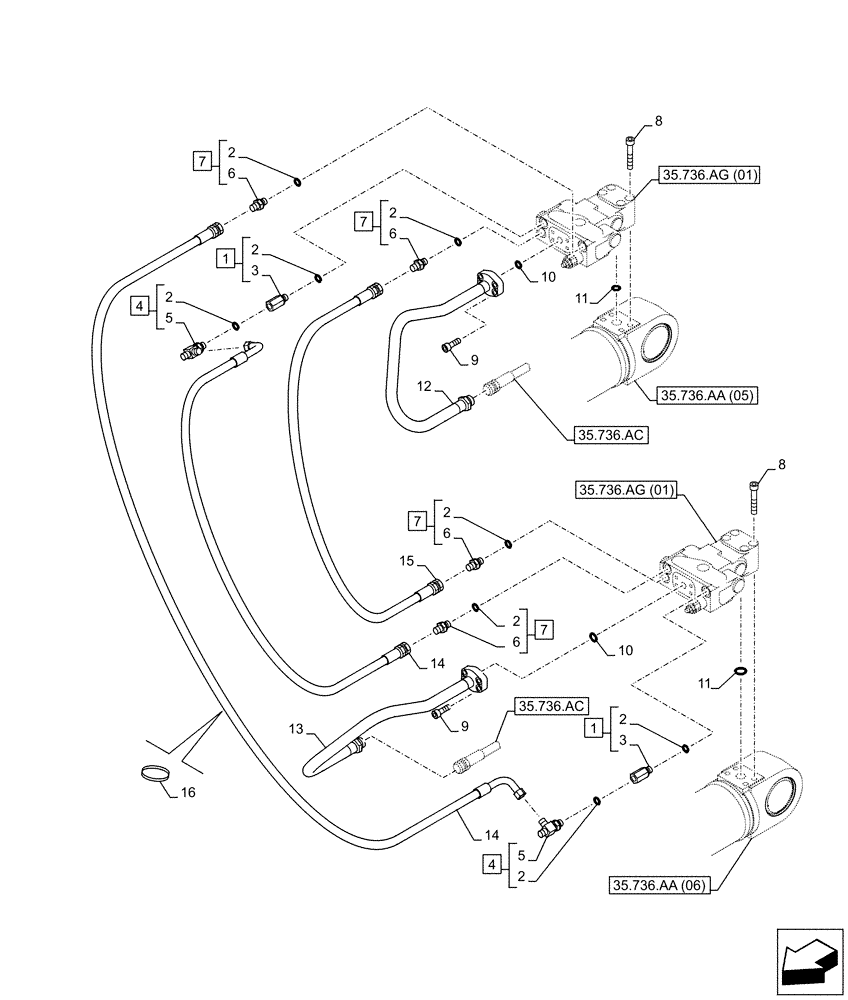

Схема запчастей Case CX160D LC - (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
14
2
5
7
1
16
35.736.aa (05)
35.736.ag (01)
2
15
4
5
35.736.aa (06)
4
7
2
35.736.ag (01)
6
7
2
2
10
9
6
6
11
9
12
2
8
3
1
1
13
8
6
10
3
35.736.ac
35.736.ac
14
7
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162525A1

STUD

ASSY, Incl 2 - 3

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

3

NSS

NOT SOLD SEPARAT

Stud, Incl in 1

1шт.

4

159497A1

TEE

ASSY, Incl 2 - 5

2шт.

5

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2 -6

2шт.

8

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

8шт.

9

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

8шт.

10

161096A1

O-RING

2шт.

11

161097A1

O-RING

2шт.

12

KLV11920

HYD TUBE

1шт.

13

KLV11910

HYD TUBE

1шт.

14

KHJ17070

HYDRAULIC HOSE

2шт.

15

KLV13680

HOSE ASSY.

1шт.

16

150067A1

MOUNTING CLIP

4шт.
