(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX160D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

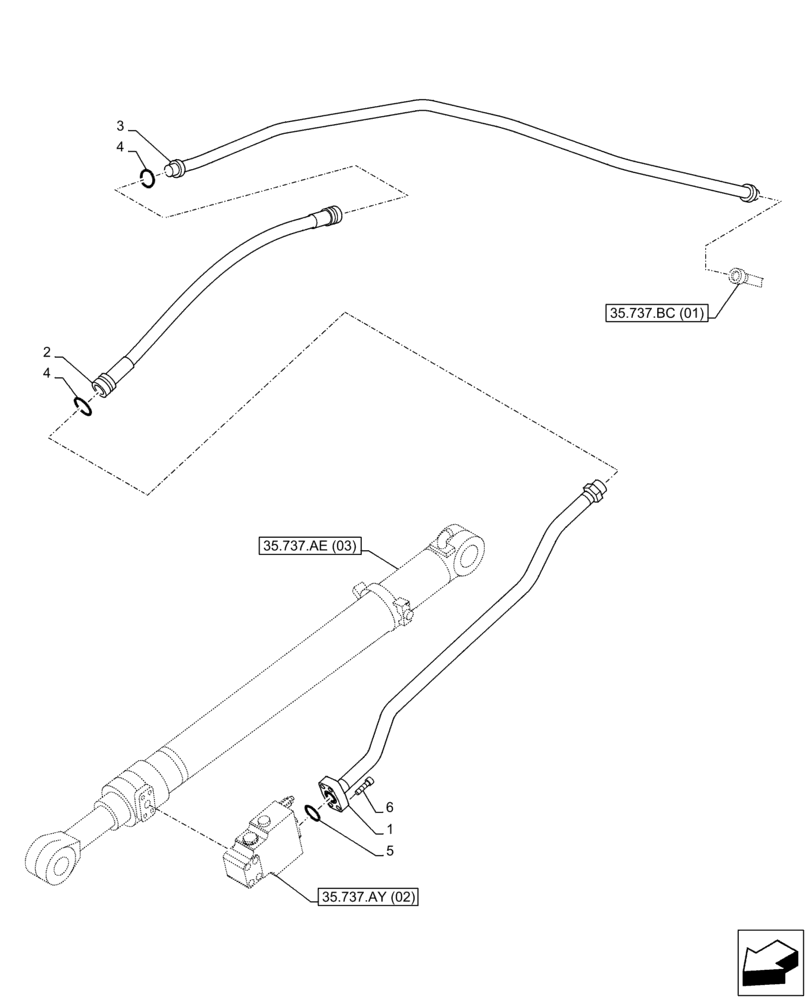

Схема запчастей Case CX160D LC - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
4
2
5
3
35.737.bc (01)
35.737.ae (03)
1
6
35.737.ay (02)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV11720Y2

HYD TUBE

1шт.

2

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

900mm

1шт.

3

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

5

161097A1

O-RING

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.
