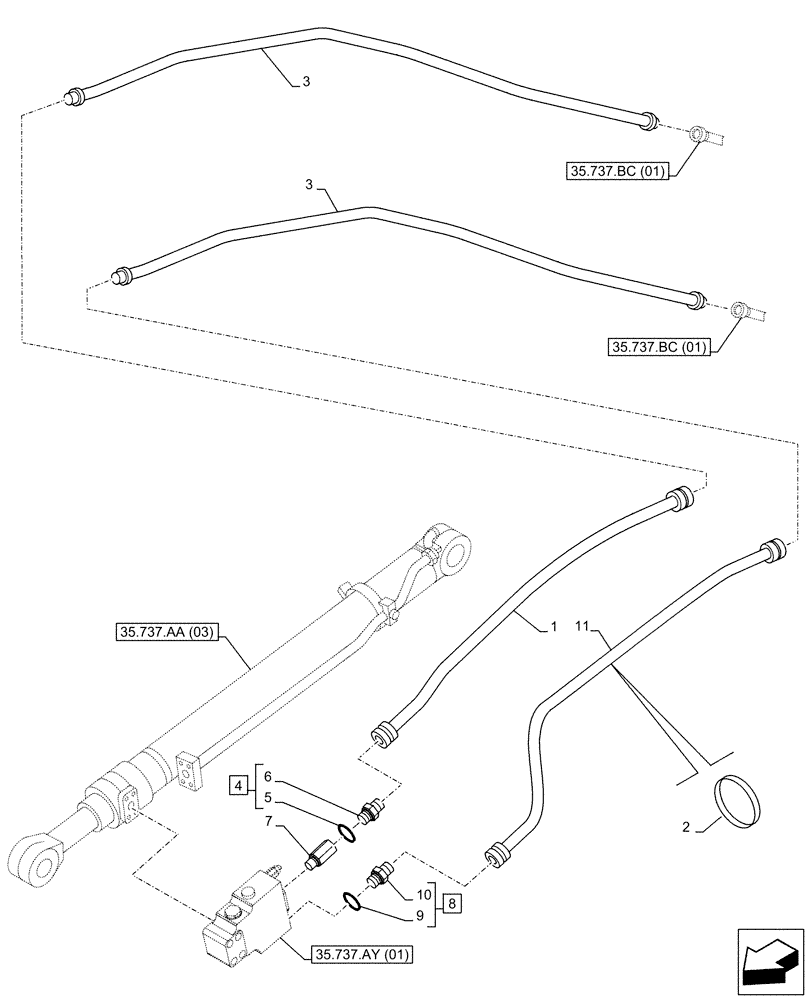

Запчасти Case CX160D LC (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ17060

HYDRAULIC HOSE

9mm ID x 2450mm

1шт.

2

150067A1

MOUNTING CLIP

150mm

7шт.

3

KLV12350

HYD TUBE

2шт.

4

152747A1

ADAPTER

ASSY, Incl 5, 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

162525A1

STUD

G1/4" x G1/4"

1шт.

8

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3*/8" x G3/8", Incl 9, 10

1шт.

9

150031A1

O-RING,10mm ID x 24mm OD

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

11

KHJ35390

HYDRAULIC HOSE

1шт.
