(35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

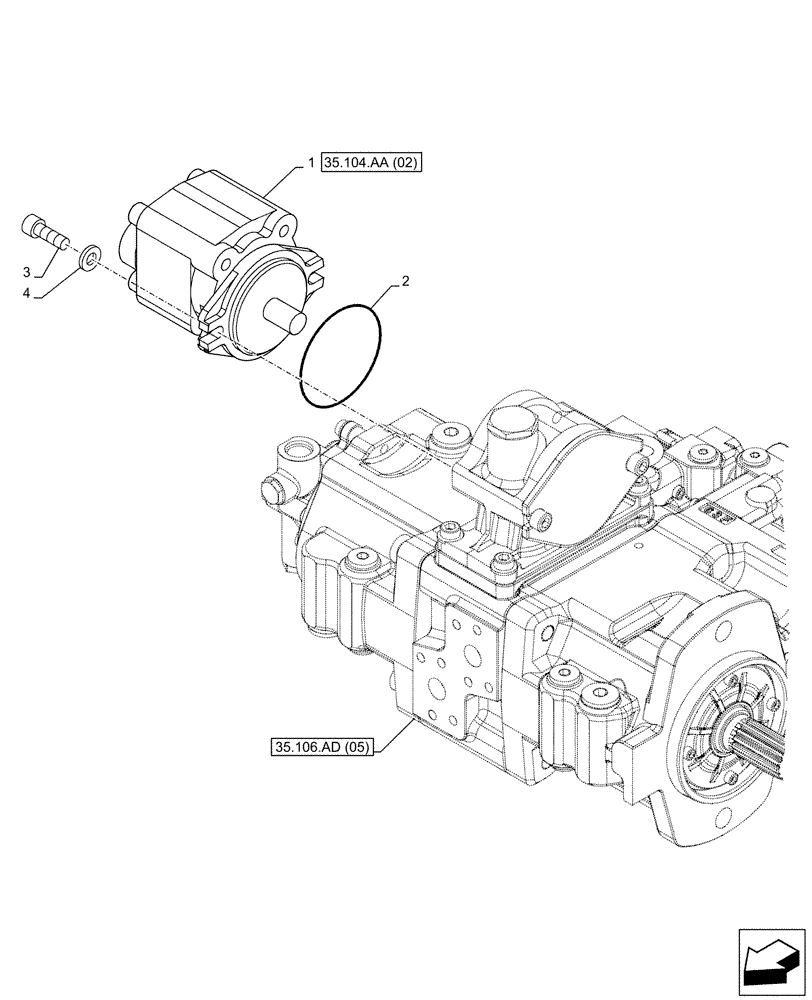

Схема запчастей Case CX160D LC - (35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.104.aa (02)
4
2
3
1
35.106.ad (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ19600

PUMP

ASSY

1шт.

2

154697A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.
