(35.352.AL[01]) - SWING REDUCTION UNIT

Запчасти Case CX210D LC (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

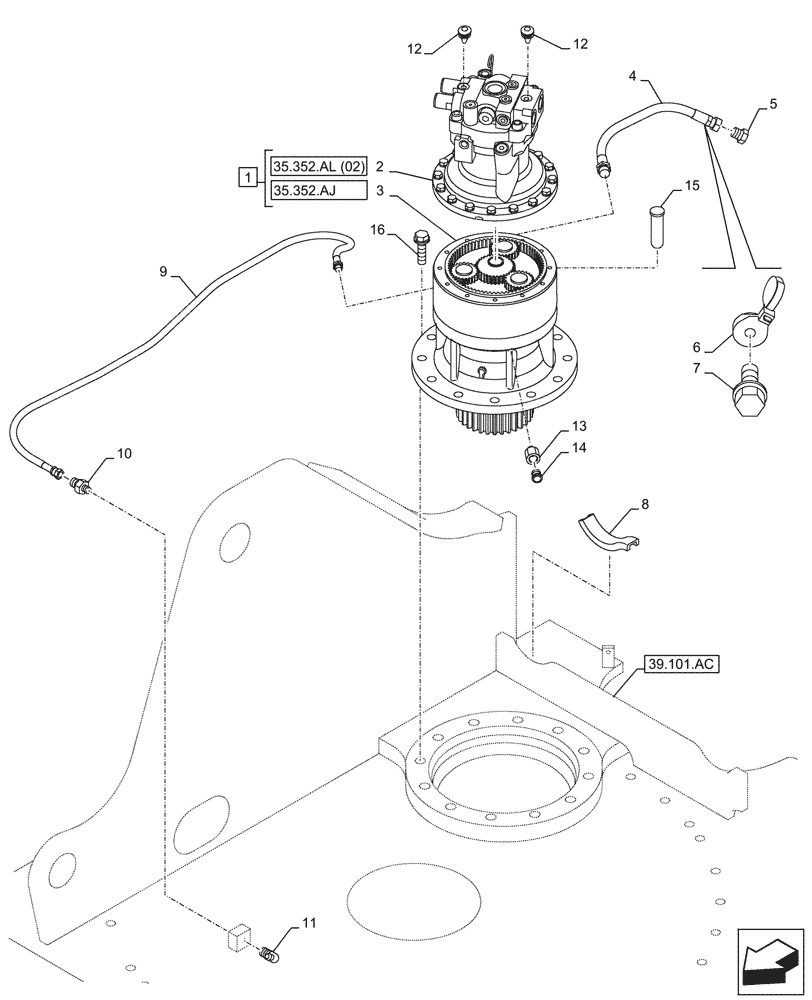

Схема запчастей Case CX210D LC - (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS
35.352.al (02)
10
2
5
16
11
12
12
4
6
7
14
9
15
3
8
1
13
35.352.aj
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRC10220

MOTO-REDUCTION GEAR

1шт.

See also Figure 35.352.AL (02), 35.352.AL (03), 35.352.AJ, 35.352.AO

1шт.

2

KRC10260

HYDRAULIC MOTOR

1шт.

3

LN001820

REDUCER

1шт.

4

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

1шт.

5

KHP0578

PLUG

G1/2"

1шт.

6

KHR2584

CLAMP

M8

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KEJ0474

FLEXIBLE SHEATH

1шт.

9

KHJ14930

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

12

KHV12270

SCREW,M12 x 1

2шт.

13

KRC10720

FITTING

1шт.

14

KRC10710

VALVE

1шт.

15

158955A1

HEADED PIN

, Serial Range: -C0429

1шт.

15

KRC11720

PIN

, Start Serial: D0429

1шт.

16

166354A1

BOLT,Sems, M20 x 75mm

11шт.
