(35.360.AB[04]) - VAR - 461869 - HAMMER CIRCUIT, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AB[04]) - VAR - 461869 - HAMMER CIRCUIT, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

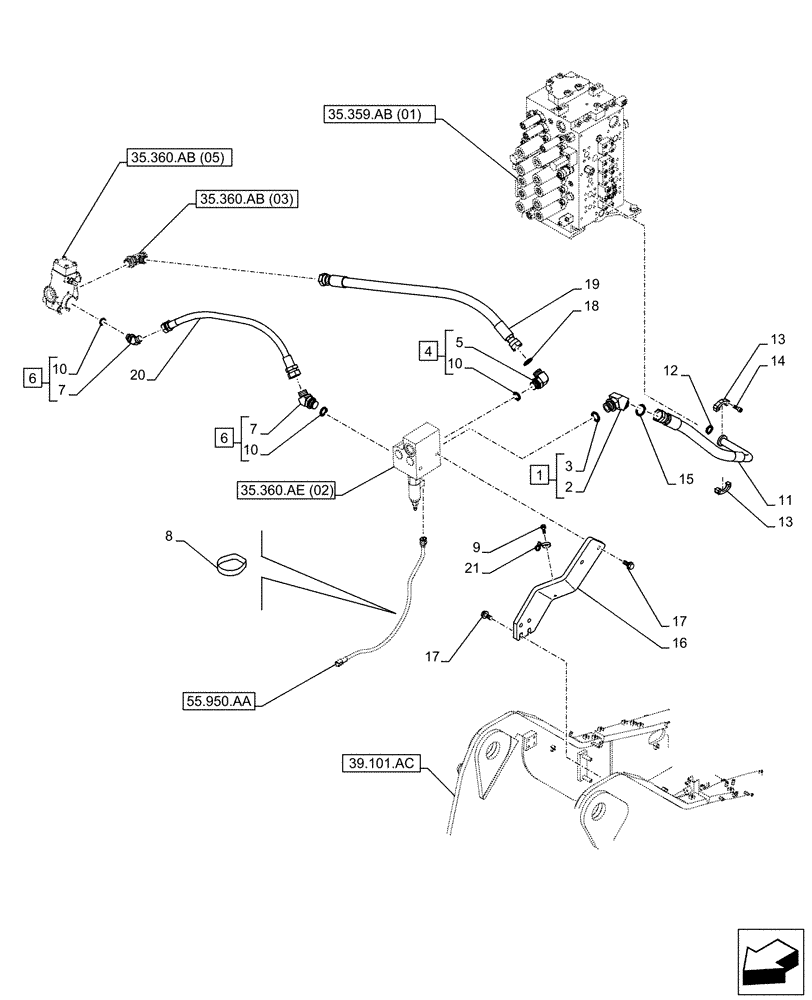

Схема запчастей Case CX210D LC - (35.360.AB[04]) - VAR - 461869 - HAMMER CIRCUIT, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
55.950.aa
7
1
21
10
13
20
19
9
14
5
4
16
13
10
18
7
17
3
6
6
10
11
12
8
17
2
15
35.359.ab (01)
39.101.ac
35.360.ab (03)
35.360.ae (02)
35.360.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11370

ELBOW

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 1

1шт.

3

154523A1

O-RING

1шт.

4

KHJ1804

ELBOW

ASSY, Incl 5, 10 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 4

1шт.

6

157586A1

ELBOW

G3/4" x G3/4", ASSY, Incl 7, 10 (Qty 1)

2шт.

7

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 6

1шт.

8

150496A1

MOUNTING CLIP

250mm

3шт.

9

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

10

154503A1

O-RING

3шт.

11

KRJ36940

HYDRAULIC HOSE

25mm ID x 670mm

1шт.

12

155211A1

O-RING

1шт.

13

153459A1

FLANGE

2шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

4шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KBJ22500

BRACKET

1шт.

17

166352A1

BOLT

M12 x 30mm

6шт.

18

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

19

KBJ19790

HYDRAULIC HOSE

19mm ID x 710mm

1шт.

20

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

19mm ID x 670mm

1шт.

21

KHR2584

CLAMP

M8

1шт.
