(35.734.AD[08]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.4M) - ASN NFS7H1193

Запчасти Case CX210D LC (35.734.AD[08]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.4M) - ASN NFS7H1193 (35) - HYDRAULIC SYSTEMS

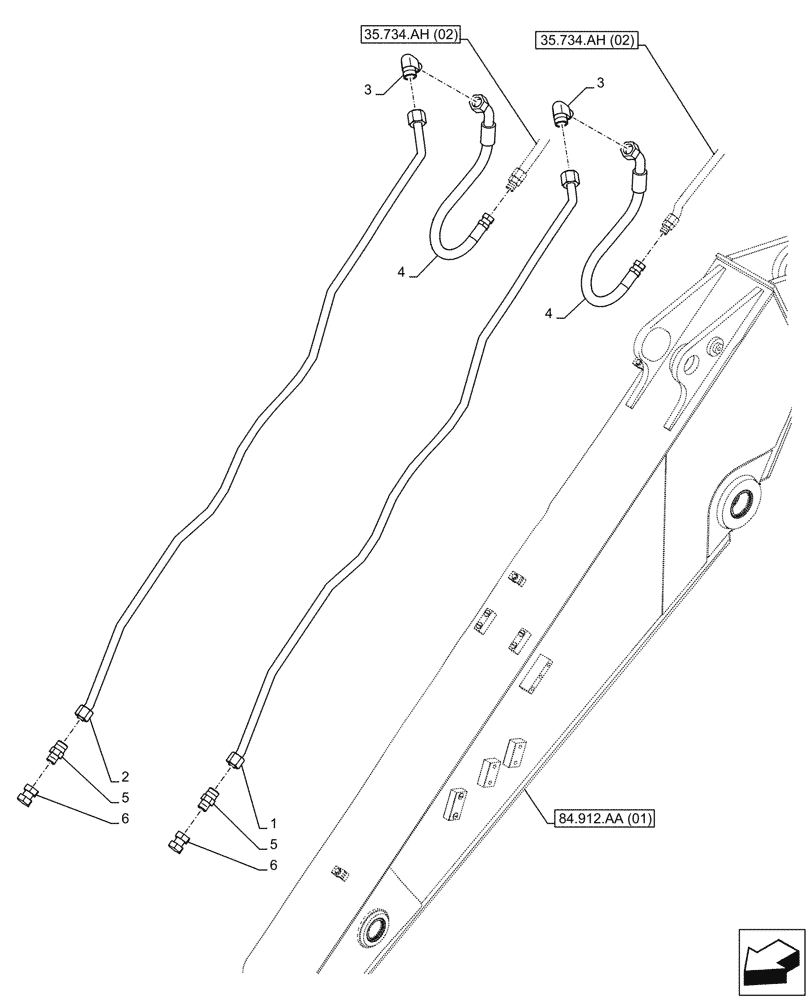

Схема запчастей Case CX210D LC - (35.734.AD[08]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.4M) - ASN NFS7H1193 (35) - HYDRAULIC SYSTEMS
84.912.aa (01)
1
6
6
3
4
2
4
3
5
5
35.734.ah (02)
35.734.ah (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV44320

PIPE

LH

1шт.

2

KRV44330

PIPE

RH

1шт.

3

KMJ0766

ELBOW

2шт.

4

KHV13840

HYDRAULIC HOSE

6mm ID x 700mm, from Solenoid Valve

2шт.

5

163065A1

UNION

2шт.

6

158842A1

PLUG

G1/4"

2шт.
