(35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX210D LC (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

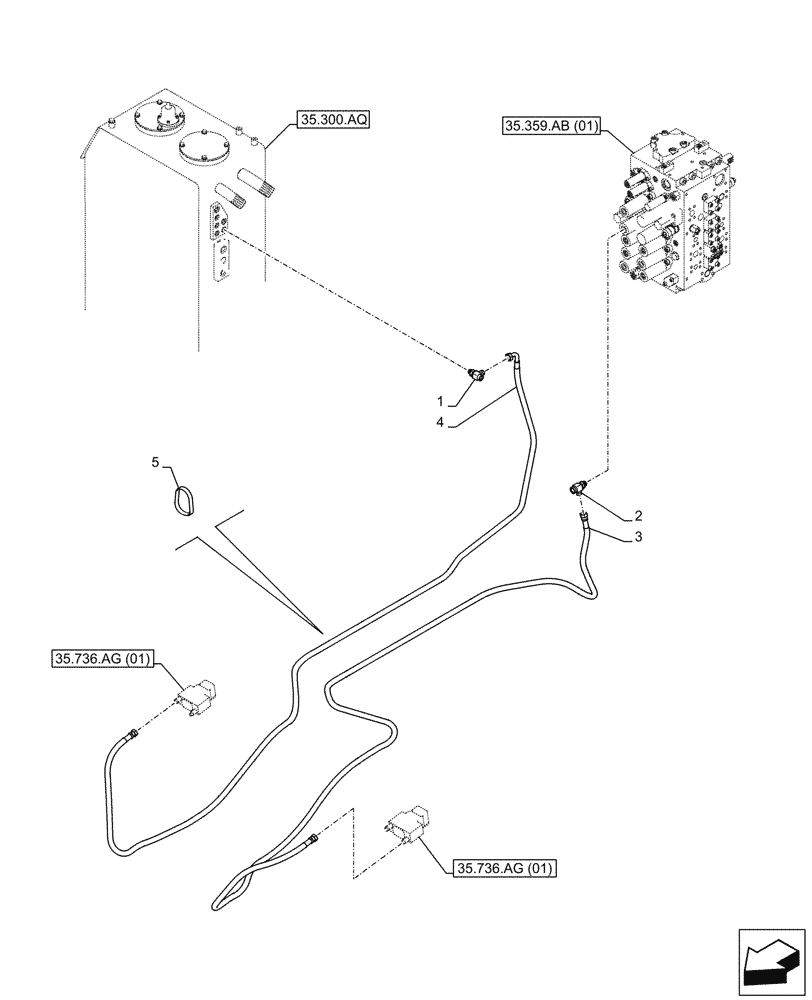

Схема запчастей Case CX210D LC - (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
2
35.300.aq
4
35.736.ag (01)
35.736.ag (01)
3
35.359.ab (01)
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11560

TEE

G1/4" x G3/8" X G1/4"

1шт.

2

KHJ31880

TEE

G3/8"

1шт.

3

KHJ22110

HYDRAULIC HOSE

9mm ID x 3700mm

1шт.

4

KHJ33850

HYDRAULIC HOSE

9mm ID x 3500mm

1шт.

5

150071A1

MOUNTING CLIP

380mm

18шт.
