(84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.7M)

Запчасти Case CX210D LC (84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.7M) (84) - BOOMS, DIPPERS & BUCKETS

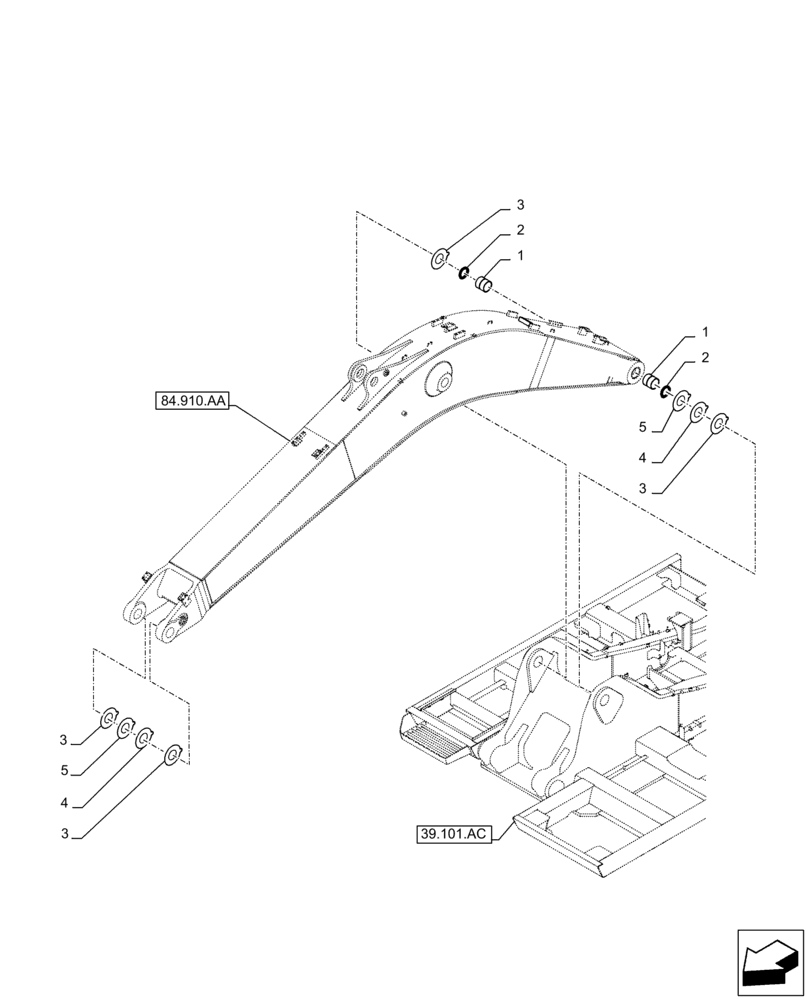

Схема запчастей Case CX210D LC - (84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.7M) (84) - BOOMS, DIPPERS & BUCKETS
1
2
1
5
4
3
5
3
4
3
3
2
39.101.ac
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV2397

SELF LUB RING

2шт.

Parts is Included in Boom Assembly PN KRV42850

1шт.

2

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

Parts is Included in Boom Assembly PN KRV42850

1шт.

3

KRV11030

SHIM,1mm Thk

4шт.

4

KRV11040

SHIM,2mm Thk

2шт.

5

KRV31490

SHIM

2шт.

Выбрано товаров: 7
