(88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.4M)

Запчасти Case CX210D LC (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.4M) (88) - ACCESSORIES

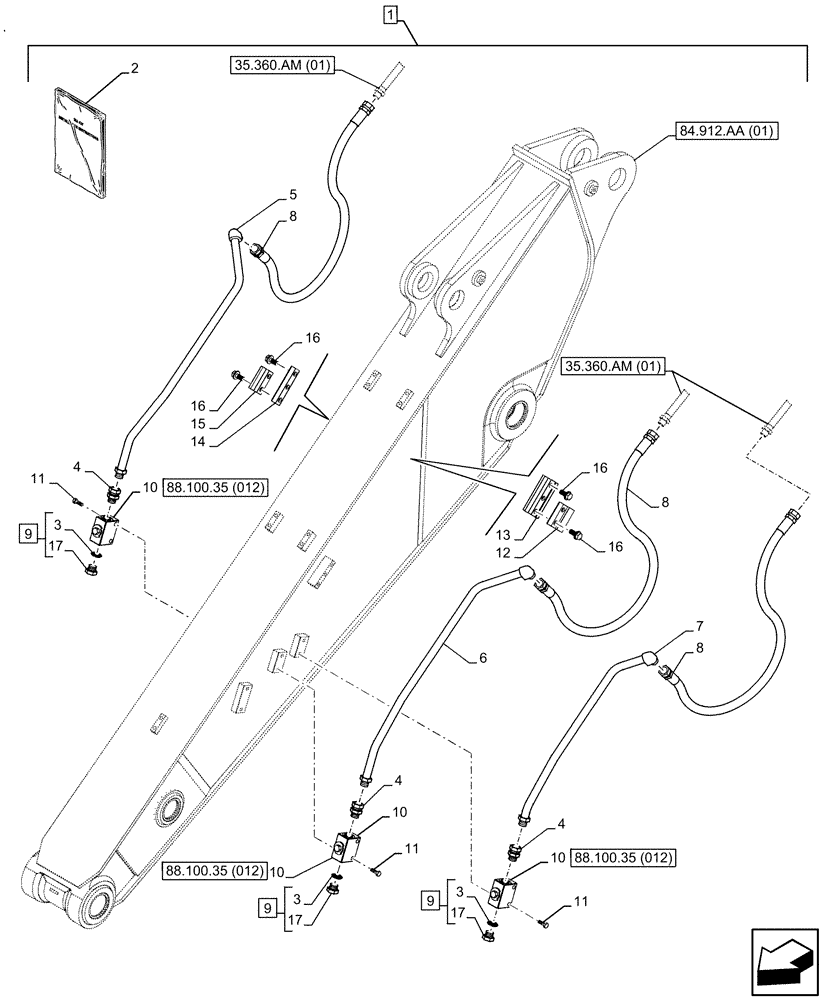

Схема запчастей Case CX210D LC - (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.4M) (88) - ACCESSORIES
17
15
16
9
84.912.aa (01)
4
10
16
9
35.360.am (01)
17
16
88.100.35 (012)
3
7
6
2
8
12
11
11
16
88.100.35 (012)
88.100.35 (012)
3
3
4
1
8
14
5
4
10
17
11
8
9
10
10
35.360.am (01)
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP317-00

CONSTRUCTION DIA

Second Option Line, Short Arm, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880428

INSTRUCTION

1шт.

2

47880470

INSTRUCTION

1шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KRV33200

PIPE

1шт.

6

KRV33180

PIPE

1шт.

7

KRV33190

PIPE

1шт.

8

KAV1558

HYDRAULIC HOSE

1250mm

3шт.

9

159085A1

PLUG

ASSY, Incl 3, 17

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

1шт.

13

KHV10490

COLLAR CLAMP

1шт.

14

KHV10510

COLLAR CLAMP

1шт.

15

KHV10500

COLLAR CLAMP

1шт.

16

166352A1

BOLT

6шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.
