(88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX210D LC (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

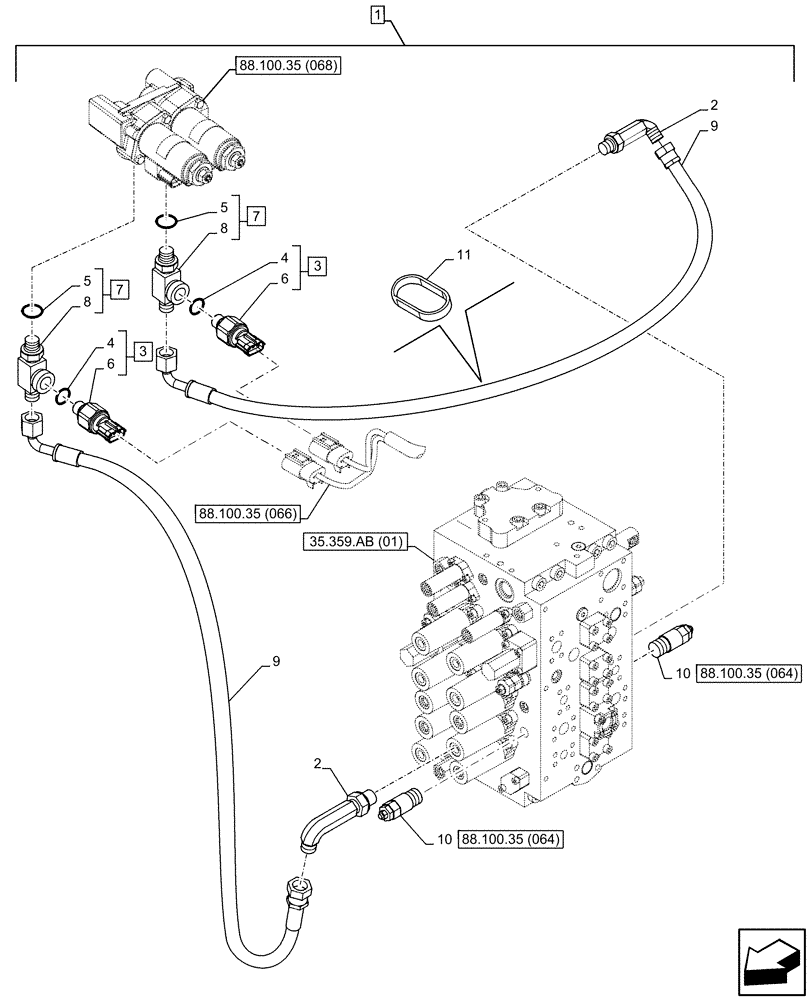

Схема запчастей Case CX210D LC - (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
10
9
5
10
5
4
7
6
3
4
88.100.35 (064)
1
8
88.100.35 (064)
2
35.359.ab (01)
9
11
6
88.100.35 (066)
88.100.35 (068)
3
8
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP264-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28880

ELBOW

2шт.

3

KHR26940

SENSOR

Pressure Sensor, 5MPa, ASSY, Incl 4, 6

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Sensor, Incl in 3

2шт.

7

167666A1

FITTING

ASSY, Incl 5, 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

Proportional Control Valve to Control Valve

2шт.

10

155745A1

VALVE PRESSURE RELIE

2шт.

11

150498A1

MOUNTING CLIP

L=297mm

8шт.
