(88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX210D LC (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

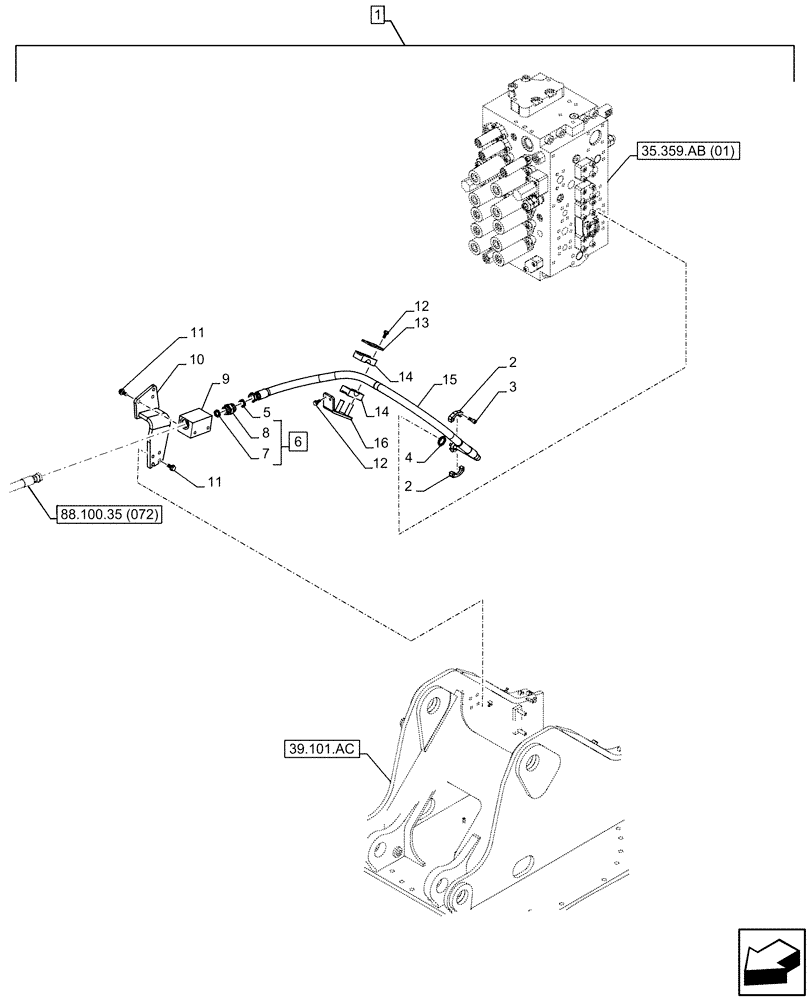

Схема запчастей Case CX210D LC - (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
39.101.ac
4
1
35.359.ab (01)
7
14
13
16
2
10
11
88.100.35 (072)
12
5
9
3
15
14
11
8
2
6
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP264-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

153459A1

FLANGE

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

155211A1

O-RING

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

ASSY, Incl 7, 8

1шт.

7

154523A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KRJ16050

SUPPORT

1шт.

11

166352A1

BOLT

M12 x30mm

6шт.

12

166052A1

BOLT

M10 x 25mm

4шт.

13

KRJ10800

PLATE

1шт.

14

KRJ11450

HOSE CLIP

2шт.

15

KRJ37790

HYDRAULIC HOSE

Manifold Valve to Control Valve B2 Port, 25mm ID x 1600mm

1шт.

16

KBJ19820

BRACKET

1шт.
