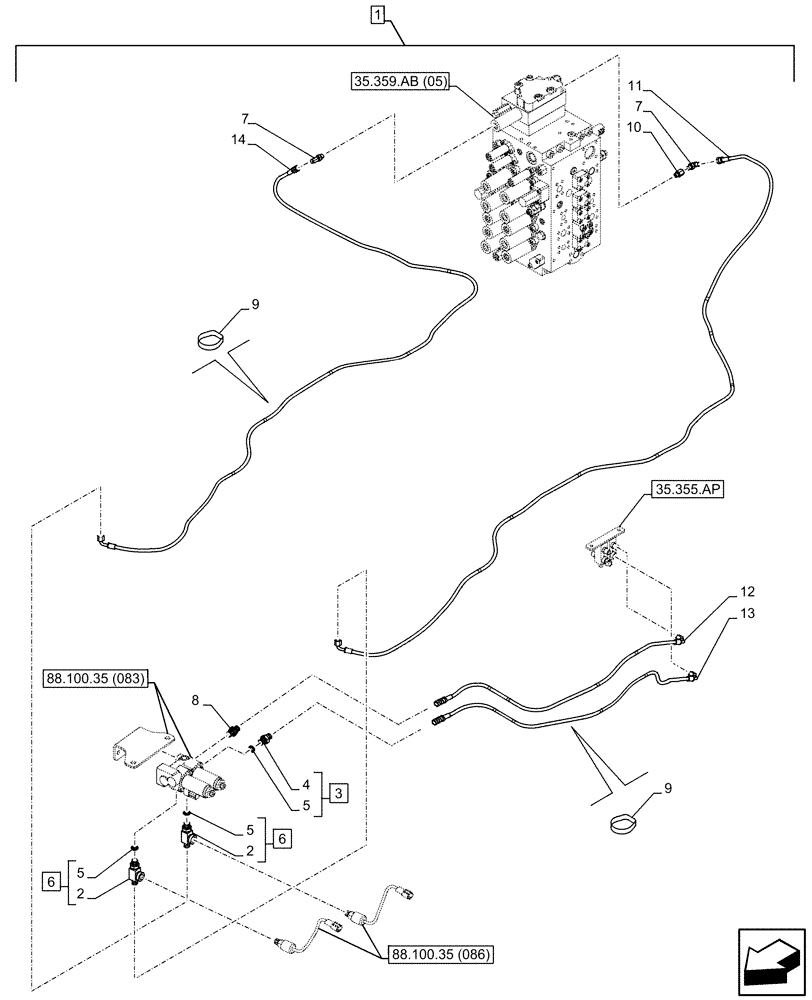

Запчасти Case CX210D LC (88.100.35[085]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG2RP267-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Tee, incl in 6

2шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

167666A1

FITTING

ASSY, G1/4" x G1/4", Incl 2, 5 (Qty 2)

2шт.

7

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.

8

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

9

150496A1

MOUNTING CLIP

250mm

4шт.

10

KHJ13640

STUD

G1/4"

1шт.

11

KHJ17840

HOSE

6mm ID x 3700mm

1шт.

12

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm

1шт.

13

KHJ2088

HOSE

6mm ID x 850mm

1шт.

14

KHJ16300

HOSE

6mm ID x 3650mm

1шт.
