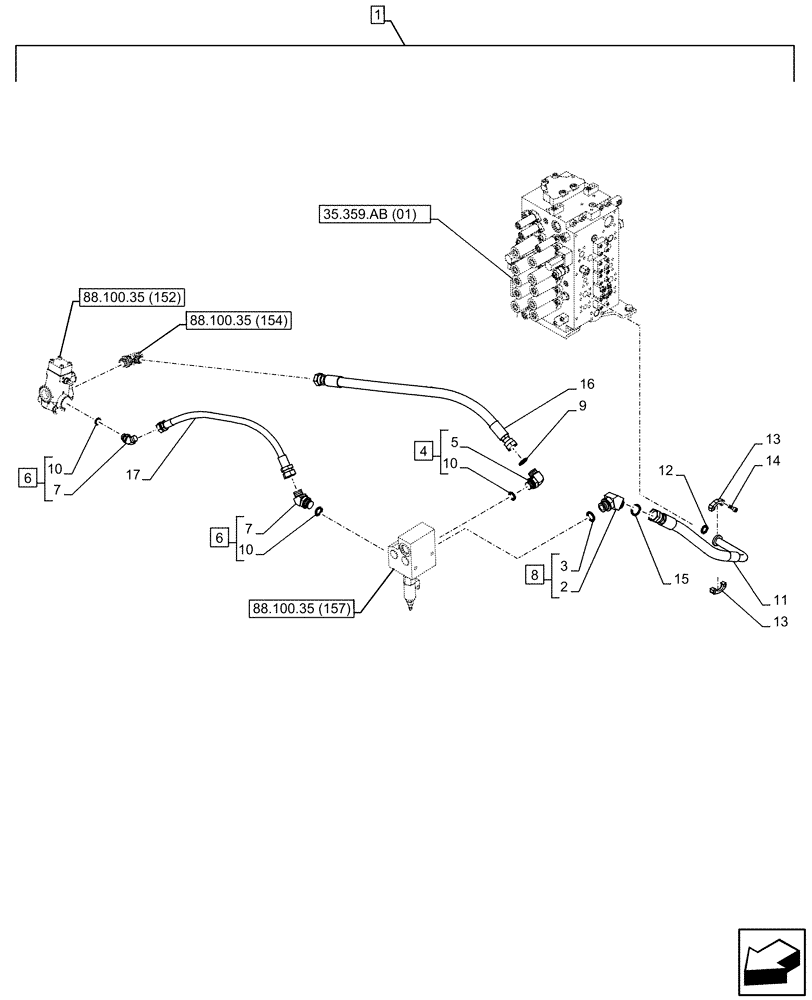

Запчасти Case CX210D LC (88.100.35[156]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, RELIEF VALVE, LINE (88) - ACCESSORIES

1

KG2RP262-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 8

1шт.

3

154523A1

O-RING

1шт.

4

KHJ1804

ELBOW

ASSY, Incl 5, 10 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 7, 10 (Qty 1)

2шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

KHJ11370

ELBOW

ASSY, Incl 2, 3

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

154503A1

O-RING

3шт.

11

KRJ36940

HYDRAULIC HOSE

25mm ID x 670mm

1шт.

12

155211A1

O-RING

1шт.

13

153459A1

FLANGE

2шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

4шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KBJ19790

HYDRAULIC HOSE

19mm ID x 710mm

1шт.

17

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

19mm ID x 670mm

1шт.
