(88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX210D LC (88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

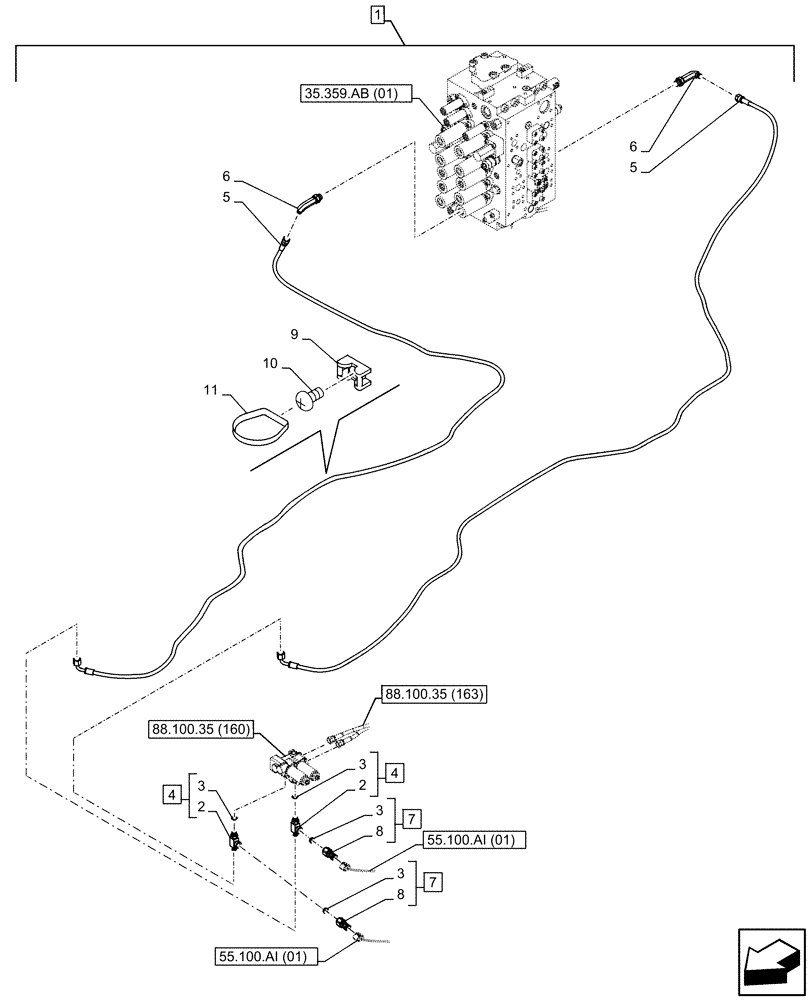

Схема запчастей Case CX210D LC - (88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
2
1
4
3
55.100.ai (01)
35.359.ab (01)
5
8
55.100.ai (01)
5
2
7
3
3
8
6
9
4
6
11
88.100.35 (163)
10
3
7
88.100.35 (160)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP262-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 4

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

4

167666A1

FITTING

ASSY, G1/4" x G1/4", Incl 2, 3 (Qty 2)

2шт.

5

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm

2шт.

6

KHJ28880

ELBOW

G3/8" x G1/4"

2шт.

7

KHR26940

SENSOR

ASSY, Pressure, 5MPa, G1/4", Incl 3 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Pressure Sensor Fitting, Incl in 7

2шт.

9

150860A1

COLLAR

4шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

11

150498A1

MOUNTING CLIP

300mm

8шт.
