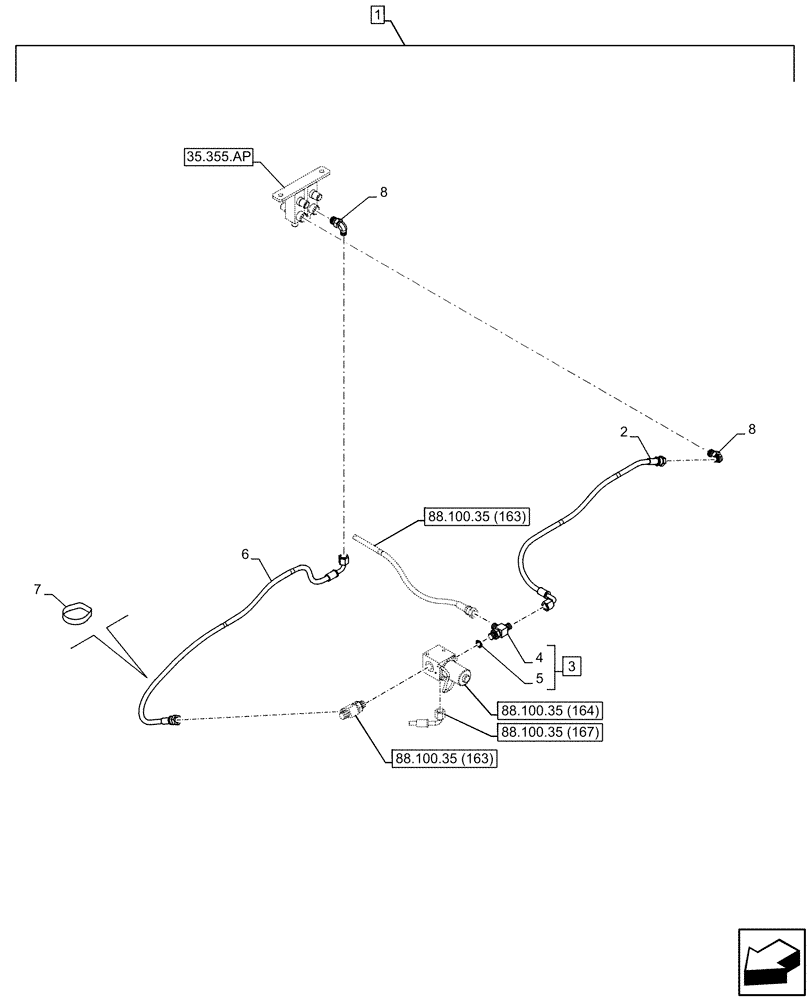

Запчасти Case CX210D LC (88.100.35[166]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

1

KG2RP262-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2195

HOSE

6mm ID x 680mm

1шт.

3

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm

1шт.

7

150496A1

MOUNTING CLIP

250mm

6шт.

8

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.
