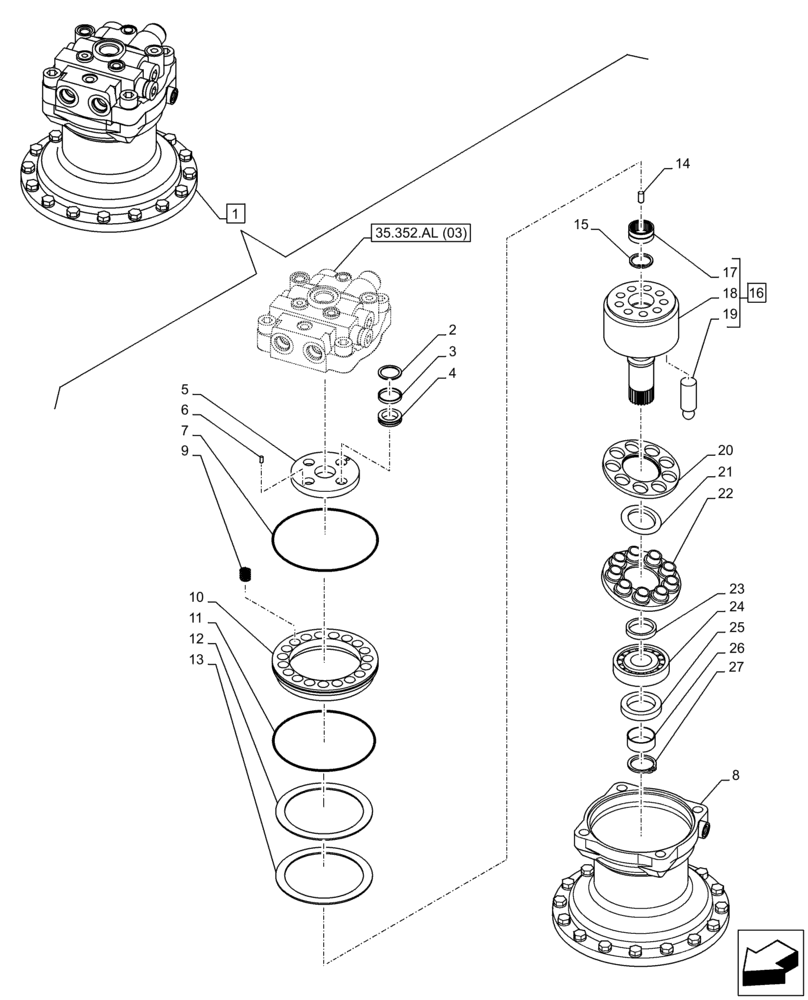

Запчасти Case CX210D LC LR (35.352.AL[02]) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

ASSY, Motor Swing, Incl 2-27

1шт.

See also Figure 35.352.AL (01), 35.352.AL (03), 35.352.AO, 35.352.AJ

1шт.

2

LG00337

SPRING

4шт.

3

LE00776

RING

4шт.

4

LB00544

BUSHING

4шт.

5

LR014920

PLATE

1шт.

6

LJ00723

PISTON

2шт.

7

LE027680

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

9

LG008420

SPRING

20шт.

10

LPM0116

PISTON

1шт.

11

LE027690

O-RING

1шт.

12

155618A1

PLATE

3шт.

13

155619A1

PLATE

3шт.

14

160101A1

COTTER PIN

2шт.

15

LA018400

RING

1шт.

16

LJ018840

PISTON RING SET

ASSY, Incl 17 - 19

1шт.

17

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

1шт.

18

NSS

NOT SOLD SEPARAT

Block Cylinder, Incl in 16

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 16

1шт.

20

155617A1

PLATE

1шт.

21

LG008410

SPRING

1шт.

22

155616A1

PLATE

1шт.

23

165745A1

COLLAR

1шт.

24

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

1шт.

25

155106A1

OIL SEAL

1шт.

26

155613A1

RING, LOCKING

1шт.

27

LH007510

COLLAR

1шт.
