(35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS

Запчасти Case CX210D LC LR (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

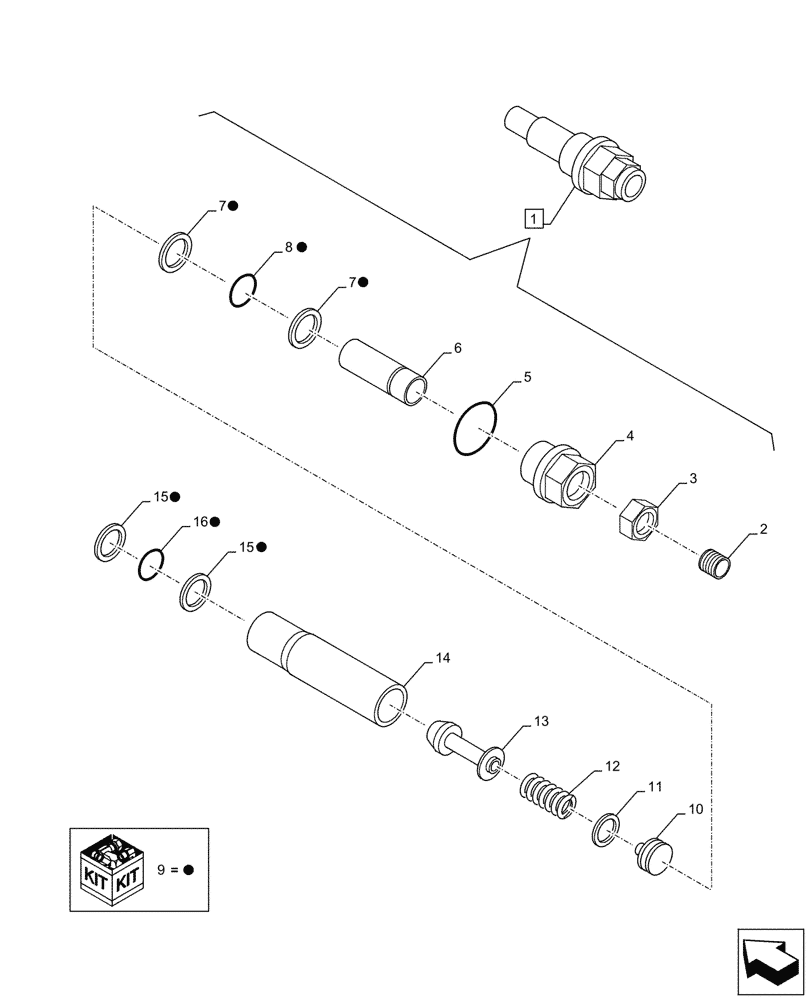

Схема запчастей Case CX210D LC LR - (35.353.AB) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
10
9
15
6
9
8
11
9
16
3
14
7
13
4
9
9
12
9
15
5
7
9
9
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LJ015300

VALVE PRESSURE RELIE

ASSY, Incl 1 - 16

1шт.

See also figure 35.353.AD (01), 35.353.AD (02), 35.353.AD (03), 35.353.AG

1шт.

2

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

5

155225A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

7

153977A1

BACK-UP RING

2шт.

8

154495A1

O-RING

1шт.

9

LZ011370

KIT

1шт.

See also Figure 35.353.AD (02), 35.353.AD (03)

1шт.

10

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Valve relief, Incl in 1

1шт.

15

153964A1

BACK-UP RING

2шт.

16

154479A1

O-RING

1шт.
