(35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX210D LC LR (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

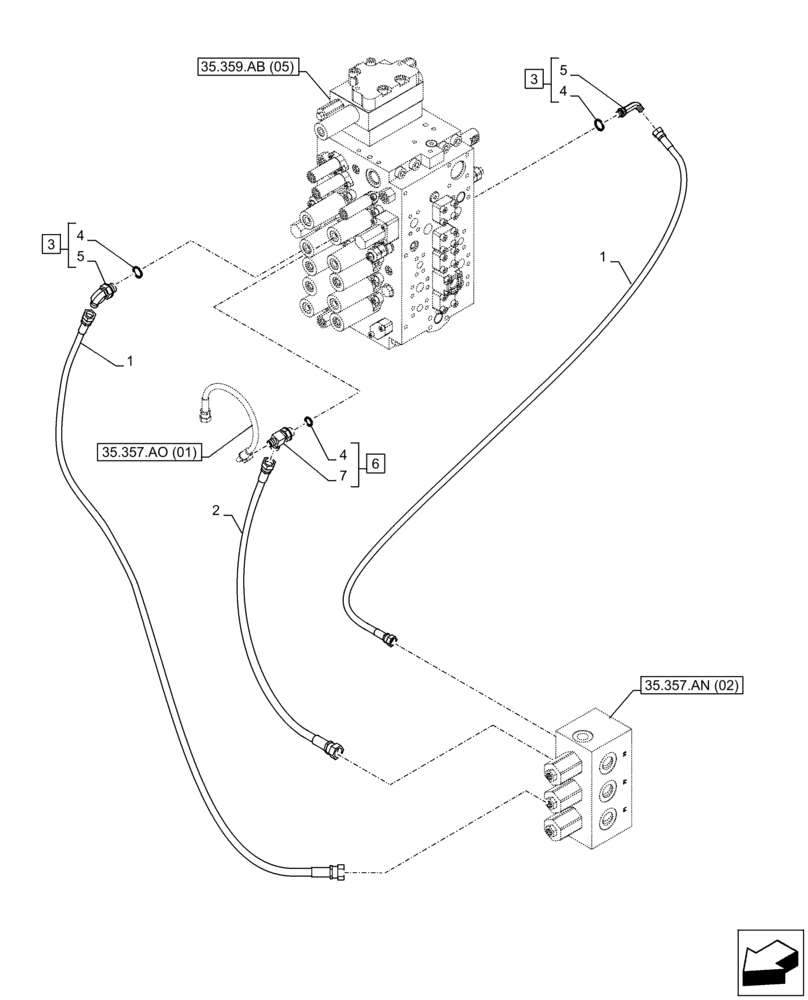

Схема запчастей Case CX210D LC LR - (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
4
3
35.359.ab (05)
2
1
1
5
4
7
3
35.357.ao (01)
4
5
35.357.an (02)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2010

HOSE

9mm ID x 1450mm

2шт.

2

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm

1шт.

3

KHJ28820

ELBOW

ASSY, G3/8" x G3/8", Incl 4 (Qty 2), 5

2шт.

4

154475A1

O-RING

3шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 3

2шт.

6

KHJ13900

TEE

ASSY, G3/8" x G1/4" x G3/8", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.
