(35.357.AN[02]) - RESTRICTOR VALVE, LINES

Запчасти Case CX210D LC LR (35.357.AN[02]) - RESTRICTOR VALVE, LINES (35) - HYDRAULIC SYSTEMS

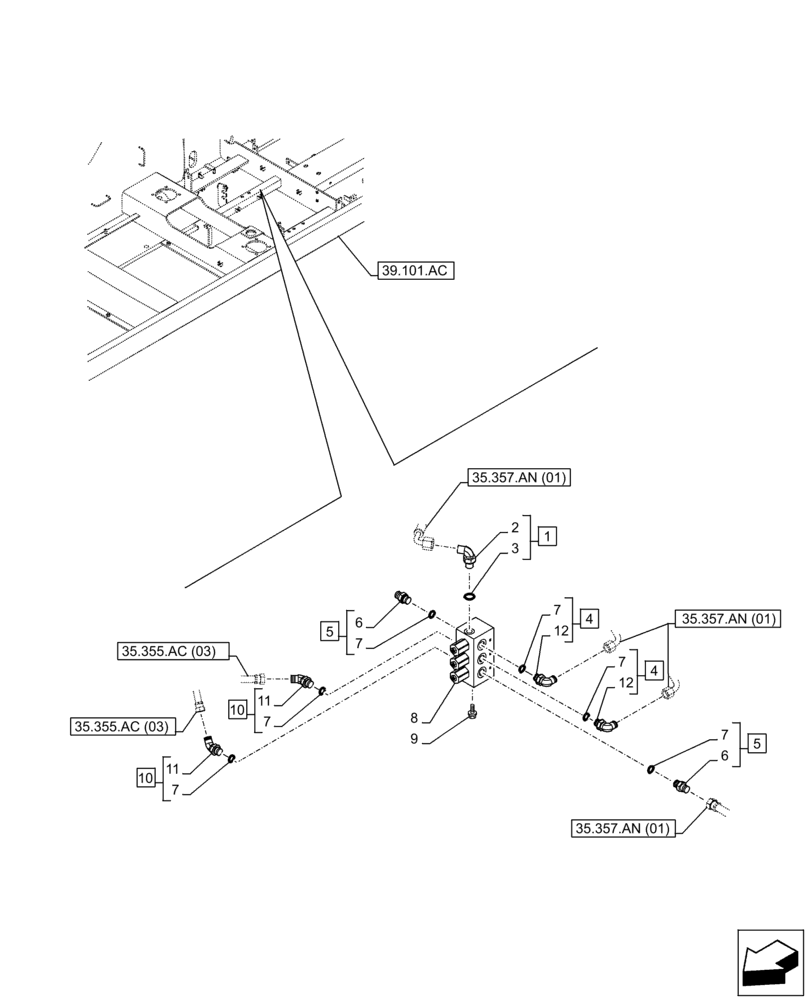

Схема запчастей Case CX210D LC LR - (35.357.AN[02]) - RESTRICTOR VALVE, LINES (35) - HYDRAULIC SYSTEMS
6
10
5
7
5
4
12
7
3
39.101.ac
35.355.ac (03)
7
7
11
6
1
7
35.355.ac (03)
4
11
35.357.an (01)
2
35.357.an (01)
7
8
12
10
9
35.357.an (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

, Serial Range: -C0470

1шт.

1

KHJ28580

ELBOW

ASSY, Incl 2, 3, Start Serial: D0470

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

, Start Serial: D0470

1шт.

4

KHJ28590

ELBOW

ASSY, G3/8 x G3/8 Incl 7 (Qty 2), 12

2шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 6, 7 (Qty 2), Start Serial: D0470

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

154475A1

O-RING

, Start Serial: D0470

6шт.

8

KHJ19920

VALVE SECTION

, Serial Range: -C0470

1шт.

8

KRJ19112

VALVE SECTION

, Start Serial: D0470

1шт.

9

166350A1

BOLT

4шт.

10

KHJ28640

ELBOW

ASSY, G3/8 x G3/8 Incl 7 (Qty 2), 11, Start Serial: D0470

2шт.

11

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 10

2шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.
