(35.357.AO[03]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION

Запчасти Case CX210D LC LR (35.357.AO[03]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

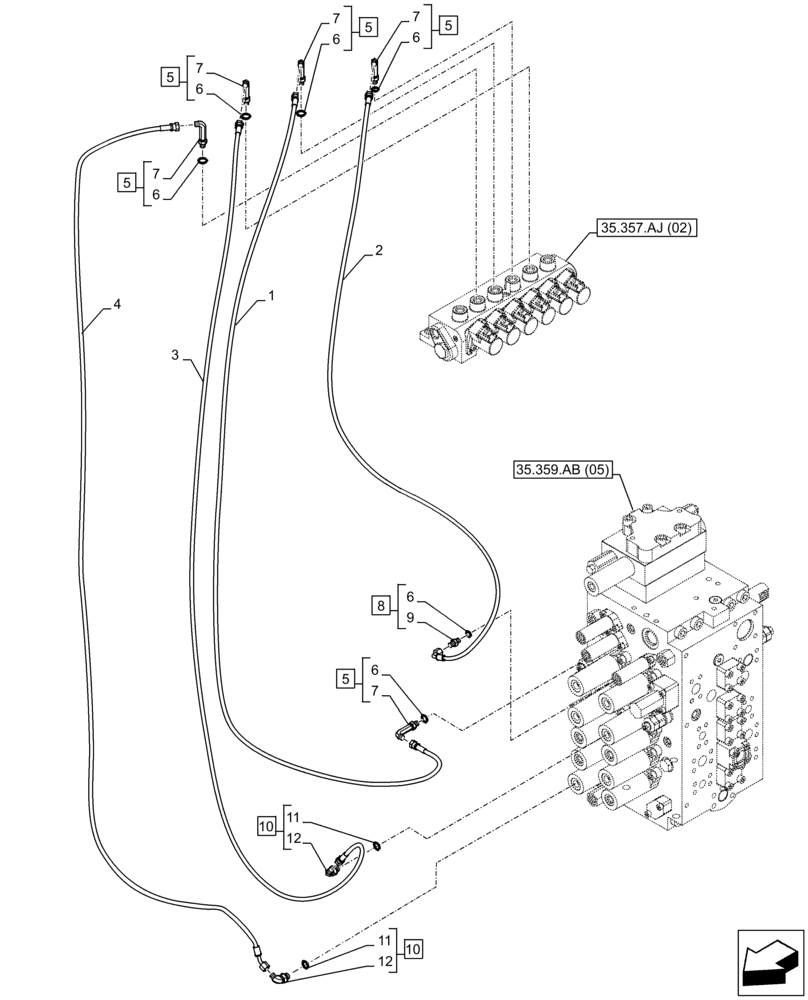

Схема запчастей Case CX210D LC LR - (35.357.AO[03]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
10
8
5
7
9
12
6
6
7
5
7
6
1
5
12
7
6
11
4
6
1
5
5
35.359.ab (05)
3
35.357.aj (02)
10
1
7
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2394

HOSE ASSY.

6mm ID x 550mm

1шт.

2

KHJ2239

HOSE,520.00 mm

6mm ID x 520mm

1шт.

3

KHJ2047

HOSE

6mm ID x 650mm

1шт.

4

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

6mm ID x 800mm

1шт.

5

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 6 (Qty 5), 7

5шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

7

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 5

5шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1) , 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl11, 12

2шт.

11

150031A1

O-RING,10mm ID x 24mm OD

2шт.

12

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 10

2шт.
