(35.359.AB[05]) - VAR - 461863, 461557 - CONTROL VALVE, BRACKET, CLAMSHELL BUCKET, ROTATION, MOUNTING

Запчасти Case CX210D LC LR (35.359.AB[05]) - VAR - 461863, 461557 - CONTROL VALVE, BRACKET, CLAMSHELL BUCKET, ROTATION, MOUNTING (35) - HYDRAULIC SYSTEMS

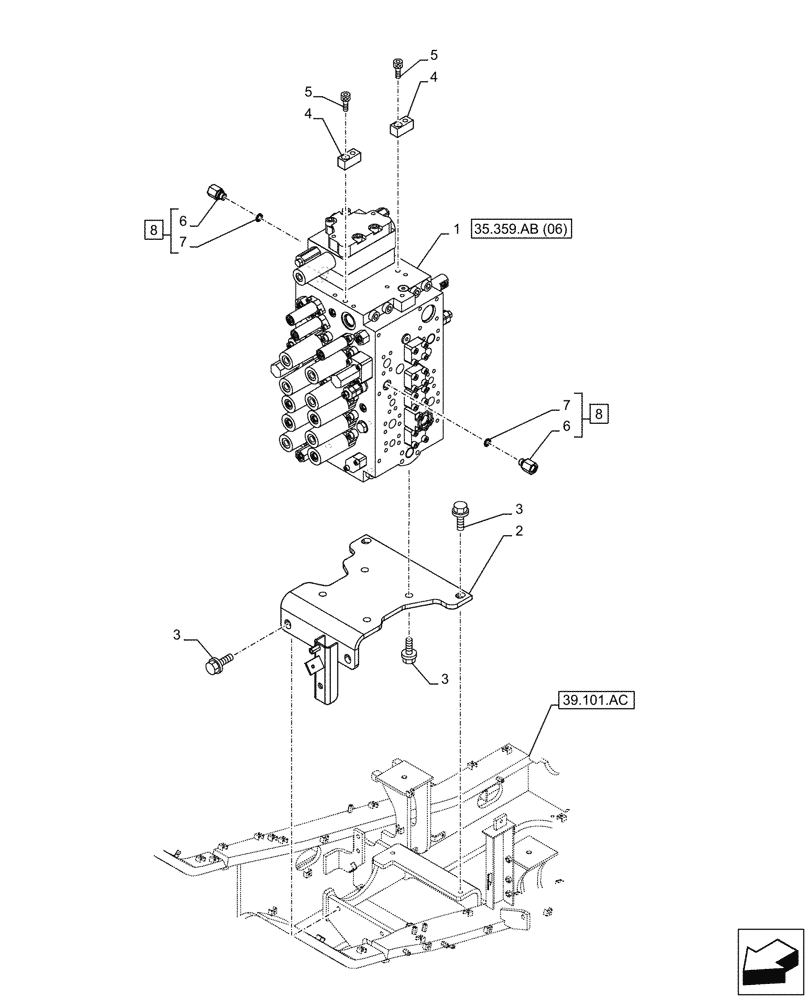

Схема запчастей Case CX210D LC LR - (35.359.AB[05]) - VAR - 461863, 461557 - CONTROL VALVE, BRACKET, CLAMSHELL BUCKET, ROTATION, MOUNTING (35) - HYDRAULIC SYSTEMS
35.359.ab (06)
4
5
1
5
7
3
2
6
3
3
7
8
6
8
4
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ37530

CONTROL VALVE

ASSY, Serial Range: -C0455

1шт.

See also Figure 35.359.AB (06), 35.359.AB (07), 35.359.AB (08), 35.359.AY (03)

1шт.

1

KRJ37531

CONTROL VALVE

ASSY, Start Serial: D0455

1шт.

See also Figure 35.359.AB (06), 35.359.AB (07), 35.359.AB (08), 35.359.AY (03)

1шт.

2

KBJ19410

BRACKET

1шт.

3

166373A1

BOLT,Sems, M16 x 40mm

8шт.

4

KBJ19550

BRACKET

2шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

7

154475A1

O-RING

2шт.

8

KHJ18190

STUD

ASSY, G3/8 x M18, Incl 6, 7

2шт.
