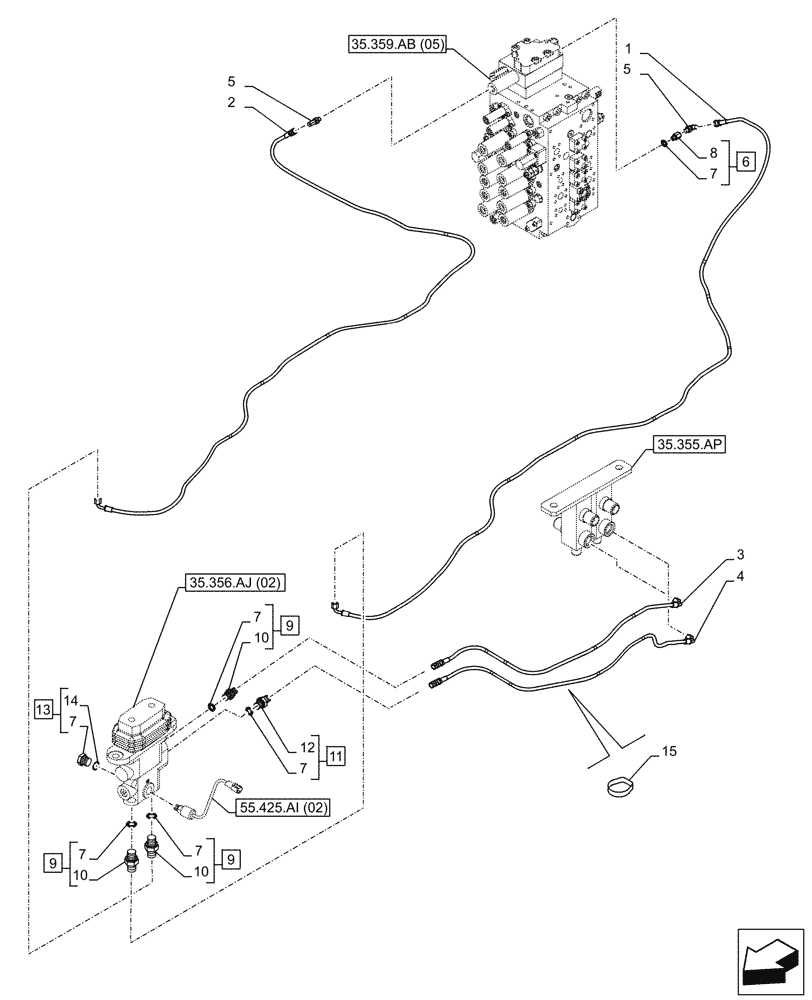

Запчасти Case CX210D LC LR (35.360.AF[03]) - VAR - 461557 -HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ17840

HOSE

6mm ID x 3700mm

1шт.

2

KHJ16300

HOSE

6mm ID x 3650mm

1шт.

3

KHJ2088

HOSE

6mm ID x 850mm

1шт.

4

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm

1шт.

5

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.

6

KHJ13640

STUD

ASSY, G1/4", Incl 7 (Qty 1), 8

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 7 (Qty 3), 10

3шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

3шт.

11

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 7 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

159002A1

PLUG

ASSY, G1/4", Incl 7 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.

15

150496A1

MOUNTING CLIP

250mm

4шт.
