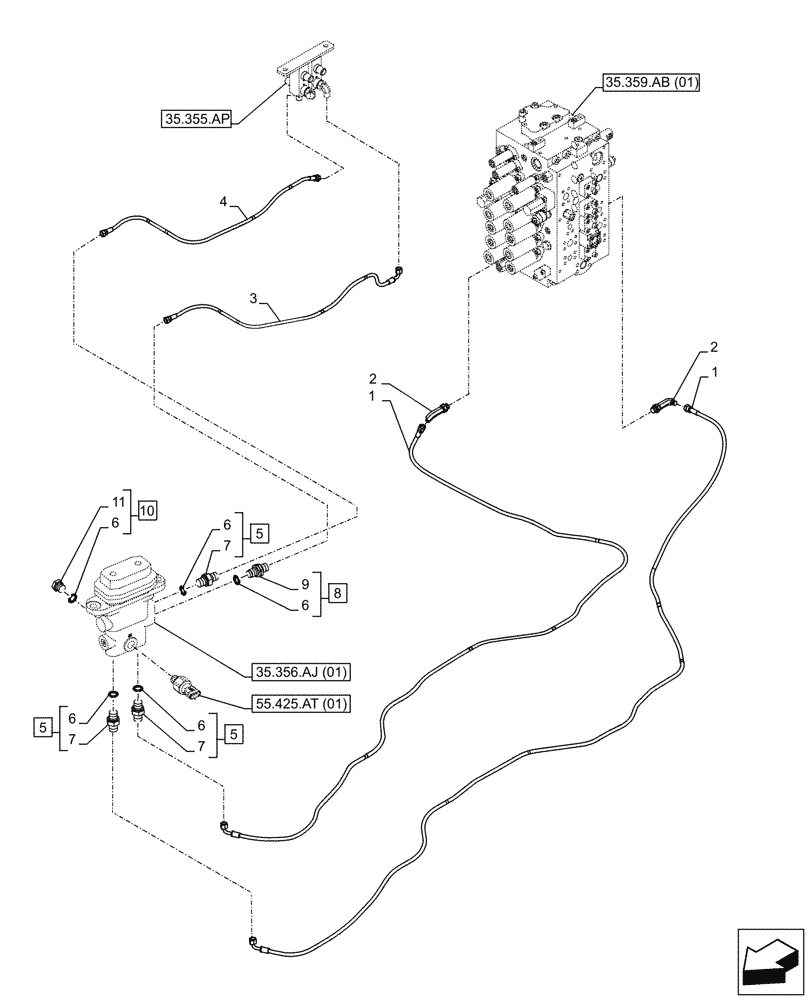

Запчасти Case CX210D LC LR (35.360.AJ[07]) - VAR - 461571 - PRESSURE SENSOR, HAMMER CIRCUIT, HYDRAULIC CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm

2шт.

2

KHJ28880

ELBOW

G3/8" x G1/4"

2шт.

3

KHJ2146

HOSE

6mm ID x 1200mm

1шт.

4

KHJ2052

HOSE

6mm ID x 1100mm

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 6 (Qty 3), 7

3шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

3шт.

8

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 6 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

159002A1

PLUG

ASSY, G1/4", Incl 6 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.
