(35.360.AK[03]) - VAR - 461571, 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS

Запчасти Case CX210D LC LR (35.360.AK[03]) - VAR - 461571, 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS (35) - HYDRAULIC SYSTEMS

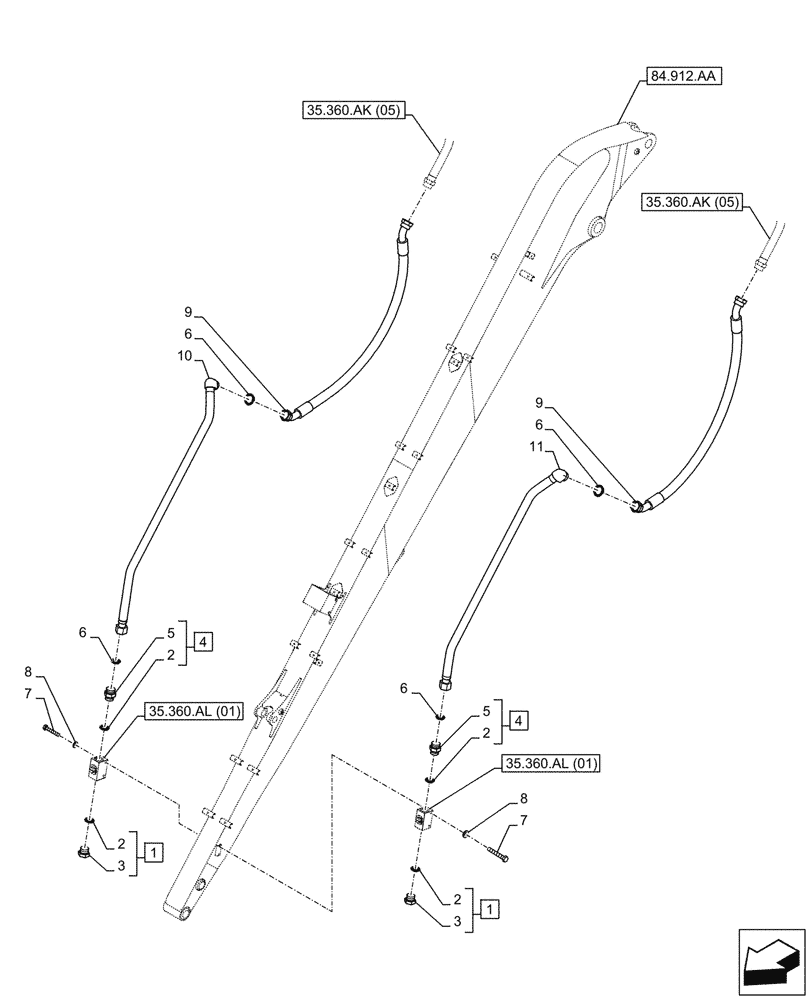

Схема запчастей Case CX210D LC LR - (35.360.AK[03]) - VAR - 461571, 461872 - ARM, LINE, HAMMER CIRCUIT, SHEARS (35) - HYDRAULIC SYSTEMS
6
6
3
8
2
8
6
4
1
7
35.360.ak (05)
5
9
7
35.360.al (01)
9
2
2
11
10
35.360.al (01)
5
84.912.aa
4
3
2
35.360.ak (05)
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162659A1

PLUG

ASSY, Incl 2 (Qty 2), 3

2шт.

2

154523A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

4

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

8

KHN0296

WASHER

2шт.

9

KRV27950

HYDRAULIC HOSE

1100mm

2шт.

10

KRV24350

HYD TUBE

1шт.

11

KRV24360

HYD TUBE

1шт.
