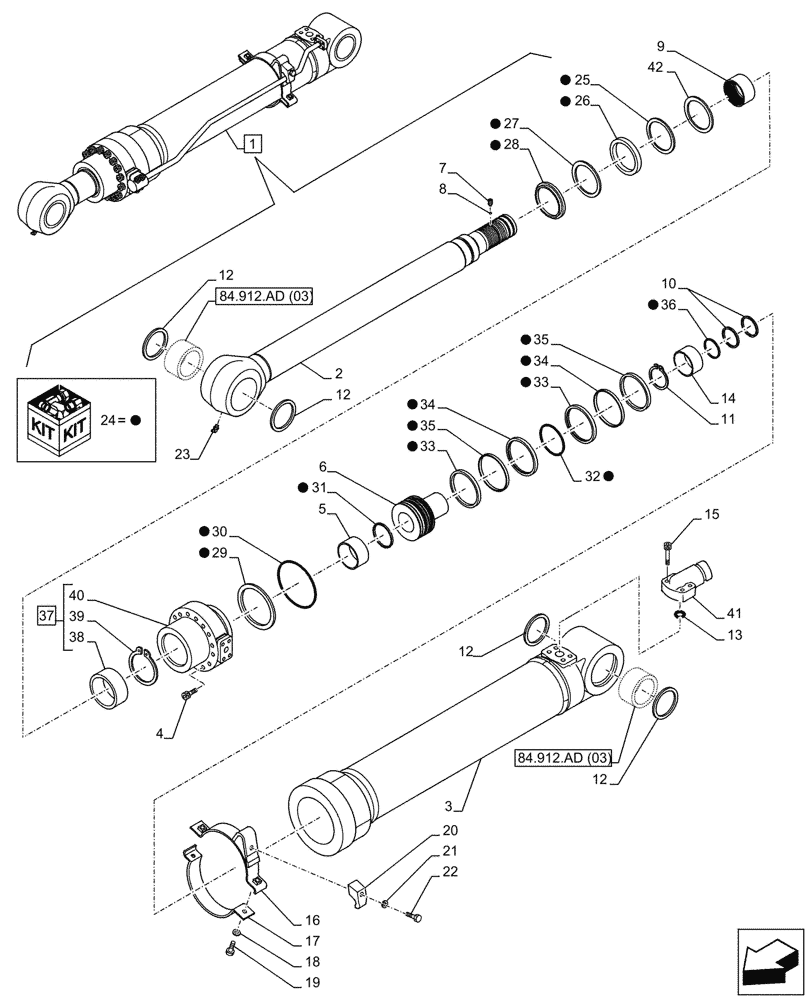

Запчасти Case CX210D LC LR (35.737.AA[04]) - VAR - 481064 - ARM, CYLINDER, COMPONENTS, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

1

KRV24010

HYDRAULIC CYLINDER

ASSY, Incl 2 - 42

1шт.

See Also Figure 84.912.AD (02)

1шт.

2

LZ008640

PISTON ROD

1шт.

3

LZ008630

HYD CYL SLEEVE

1шт.

4

108R020Z080N

BOLT

12шт.

5

LE00740

BACK-UP RING

1шт.

6

LJ014420

PISTON

1шт.

7

156228A1

SET SCREW

1шт.

8

155981A1

BALL

1шт.

9

LA010880

SPECIAL NUT

1шт.

10

160128A1

STOP

2шт.

11

160129A1

RING, SNAP

1шт.

12

162962A1

WIPER SEAL

4шт.

13

154543A1

O-RING

2шт.

14

162709A1

BEARING

1шт.

15

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

8шт.

16

LD001410

MOUNTING CLIP

1шт.

17

LD001400

MOUNTING CLIP

1шт.

18

156227A1

WASHER

2шт.

19

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

20

155717A1

COLLAR

1шт.

21

892-10012

LOCK WASHER,M12

1шт.

22

628-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd

1шт.

23

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

24

LZ011260

SEAL KIT

1шт.

25

LE012550

O-RING

1шт.

26

LE012320

O-RING

1шт.

27

LE00738

BACK-UP RING

1шт.

28

LE019480

BACK-UP RING

1шт.

29

154797A1

O-RING

1шт.

30

LE00739

BACK-UP RING

1шт.

31

LE00741

BACK-UP RING

1шт.

32

LE00742

BACK-UP RING

1шт.

33

LE00743

BACK-UP RING

2шт.

34

LE013620

WIPER SEAL

2шт.

35

LE00745

SCRAPER RING

2шт.

36

LE00746

SEAL

1шт.

37

LU00191

GLAND

ASSY, Incl 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Cushion, Incl in 37

1шт.

39

NSS

NOT SOLD SEPARAT

Ring, Incl in 37

1шт.

40

NSS

NOT SOLD SEPARAT

Cyl. Head, Incl in 37

1шт.

41

LJ014170

COUPLING FLANGE

1шт.

42

165746A1

SHIM

1шт.
