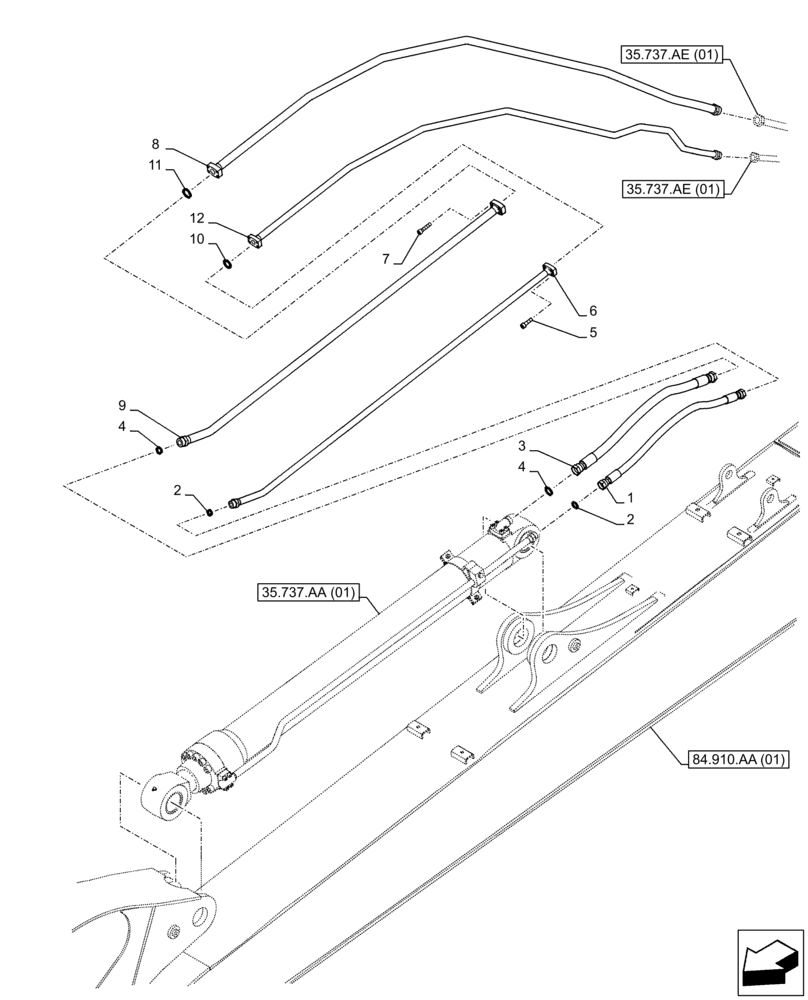

Запчасти Case CX210D LC LR (35.737.AE[02]) - VAR - 481248 - ARM, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

KRV12781

HYDRAULIC HOSE

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

6

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

8

KRV24230

HYD TUBE

1шт.

9

KRV2894

HYD TUBE,26 mm ID x 34 mm OD

1шт.

10

151099A1

O-RING

1шт.

11

152683A1

O-RING

1шт.

12

KRV44140

PIPE

1шт.
