(35.738.AE[03]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M)

Запчасти Case CX210D LC LR (35.738.AE[03]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS

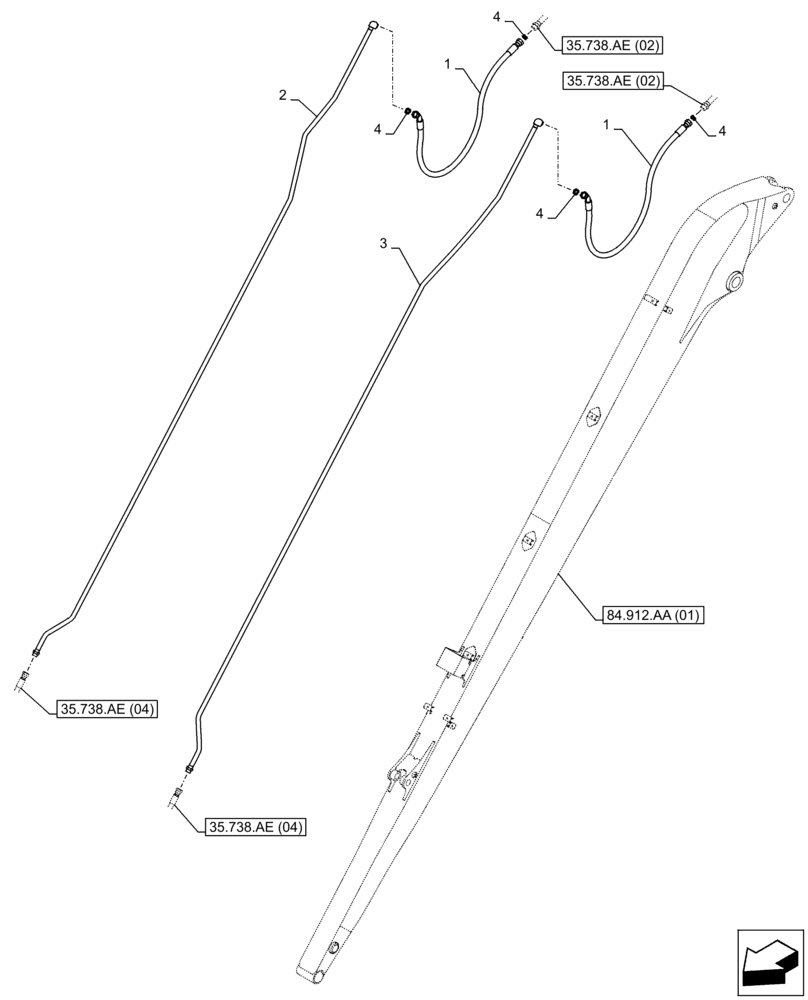

Схема запчастей Case CX210D LC LR - (35.738.AE[03]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS
35.738.ae (02)
3
1
35.738.ae (04)
35.738.ae (04)
35.738.ae (02)
2
4
4
1
84.912.aa (01)
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV15030

HYDRAULIC HOSE

1шт.

2

KRV24270

HYD TUBE

RH

1шт.

3

KRV24280

HYD TUBE

LH

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
