(88.100.35[145]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX210D LC LR (88.100.35[145]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

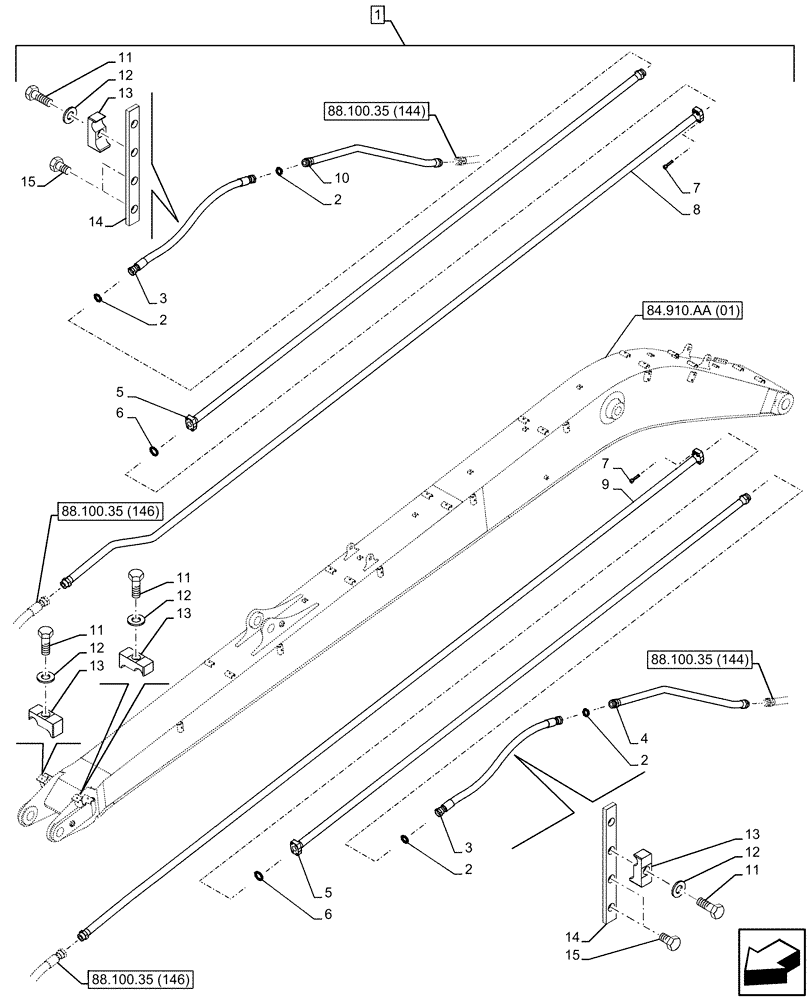

Схема запчастей Case CX210D LC LR - (88.100.35[145]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
88.100.35 (144)
7
2
12
14
88.100.35 (144)
13
11
12
88.100.35 (146)
5
10
2
14
12
15
11
11
5
9
12
7
4
11
84.910.aa (01)
13
15
13
13
3
6
2
6
2
1
8
88.100.35 (146)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP386-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

2шт.

4

KRV38020

PIPE

LH

1шт.

5

KRV17540

HYD TUBE

2шт.

6

154548A1

O-RING

2шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

8

KRV44170

PIPE

RH

1шт.

9

KRV44180

PIPE

LH

1шт.

10

KRV38010

PIPE

RH

1шт.

11

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

14шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

14шт.

13

150777A1

COLLAR

14шт.

14

KRV2815

BAR

12шт.

15

166348A1

BOLT

M16 x 45mm

24шт.
