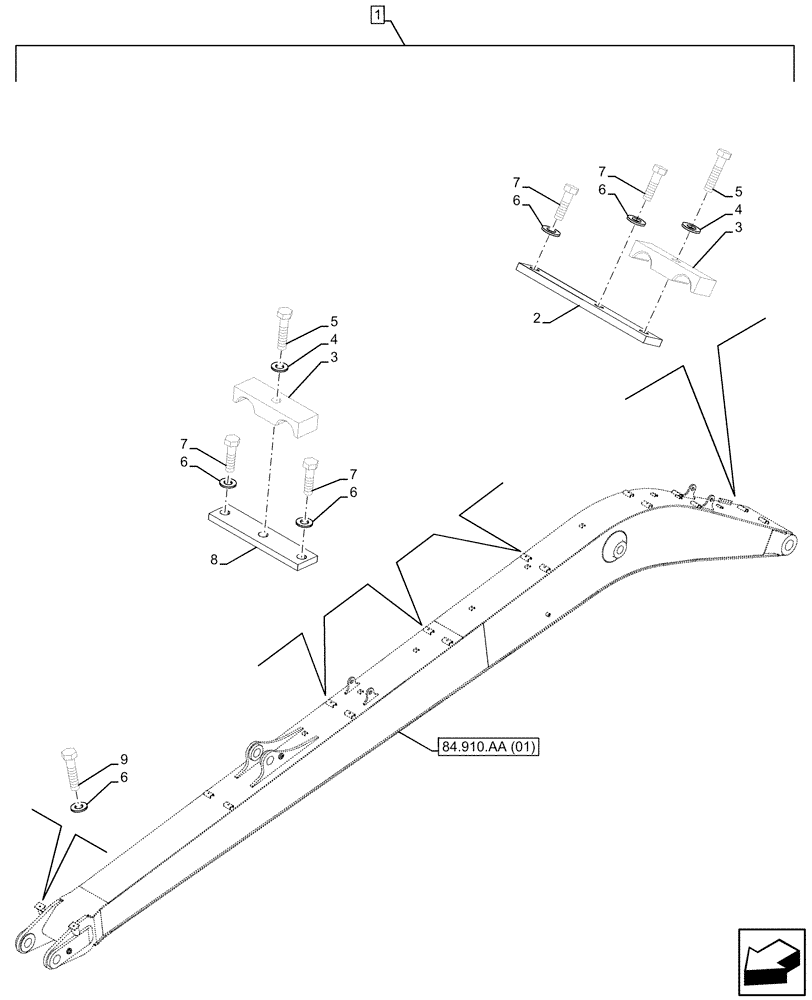

Запчасти Case CX210D LC LR (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRV24750

PLATE

1шт.

3

168551A1

COLLAR

4шт.

4

150811A1

WASHER

4шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

10шт.

7

102R016Y085R

BOLT

8шт.

8

KRV24760

PLATE

3шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.
