(35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX210D NLC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

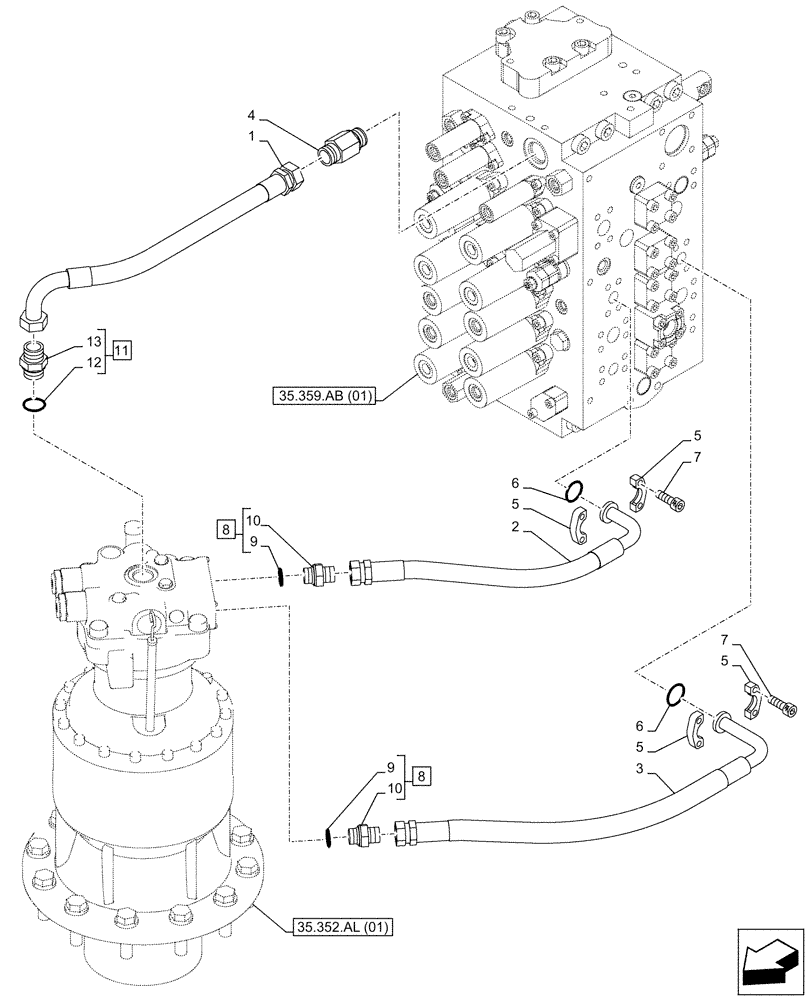

Схема запчастей Case CX210D NLC - (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
6
10
10
7
11
5
7
2
3
5
8
4
1
6
12
9
13
5
5
9
8
35.352.al (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAJ2390

HYDRAULIC HOSE,25.40 mm ID x 520.00 mm

25mm ID x 520mm

1шт.

2

KRJ29080

HYDRAULIC HOSE

19mm ID x 550mm

1шт.

3

KRJ37450

HYDRAULIC HOSE

19mm ID x 730mm

1шт.

4

KMJ0187

ADAPTER

1шт.

5

153458A1

FLANGE

4шт.

6

161097A1

O-RING

2шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 9, 10

2шт.

9

150542A1

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

11

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, G1" x G1", Incl 12, 13

1шт.

12

152211A1

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.
